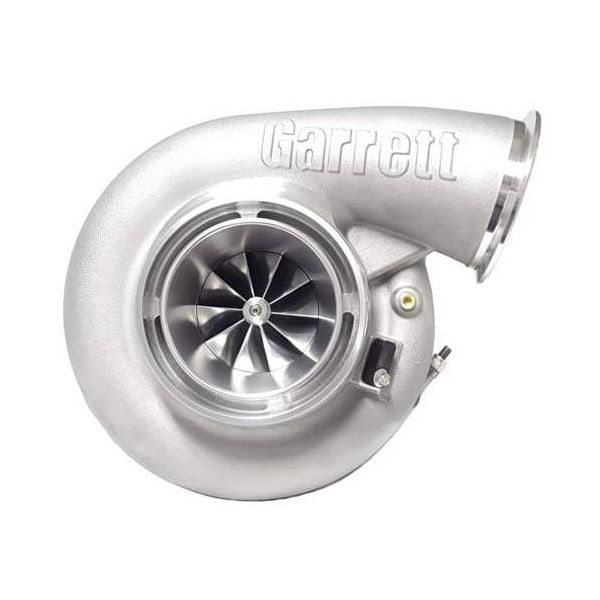

Garrett G45-1125 67mm G Series Turbo - T4 Divided 1.28AR EWG
TAGS: Garrett G45-1125, 67mm, T4 Divided 1.28ar, G Series Turbo, 1125HP, 888169-5003S, 757707-0025
Found it for less but value our service?
Details
Garrett G45-1125 67mm G Series Turbo - T4 Divided 1.28AR EWG - 888169-5003S, 757707-0025
GARRETT G45-1125 67MM:
Horsepower: 600 - 1125 Displacement: 2.0L - 8.0L
PRODUCT FEATURES:
• G45-1125 compressor aero increases flow up to 10% (compared to GTX4502R 67mm)
• 67mm compressor inducer | 102mm compressor exducer
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 14% (compared to GTX45R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• T4 Divided 1.28ar Stainless steel turbine housings
• Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter
PRODUCT SPECIFICATIONS:
• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 102mm
• Compressor Wheel Trim: 44
• Compressor Housing A/R: 0.85
• Turbine Wheel Inducer: 89mm
• Turbine Wheel Exducer: 82mm
• Turbine Wheel Trim: 84
APLICABLE PART NUMBERS: 888169-5003S, 757707-0025
THE ALL NEW GARRETT G SERIES TURBOCHARGERS
Garrett G Series Highlights:
*EVOLUTIONARY ULTRA HIGH FLOW G-Series Turbine Wheel
*Advanced aerodynamics G Series Compressor Wheel
*Compact Standard Package
*The Results: +20% More Horsepower & Quicker Spool!!!
Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!
Garrett G Series Turbine Wheel: By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimaginable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.
More Information
| Part Number | 888169-5003S, 757707-0025 |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 40.000000 |
| G Series Horsepower Range | G45-1125 67mm (600-1125HP) |
