Garrett G47-1650 80mm/109mm G Series Turbo
TAGS: Garrett G47-1650 80mm/109mm G Series Turbo, Ball Bearing Turbocharger, Tial VBand, T6, 1650HP, 880547-5024S
Found it for less but value our service?
Details
Garrett G47-1650 80mm/109mm G Series Turbocharger - 1650HP - 880547-5024S
Garrett G47-1650 G Series Features:
Supports nearly 1850 horsepower with amazing boost response depending on your inducer wheel choice
76mm | 80mm comp inducer | 109mm comp exducer along with 80mm | 88mm comp inducer | 120 comp exducer
Spool: up to +9% (estimated by flow, efficiency, and inertia)

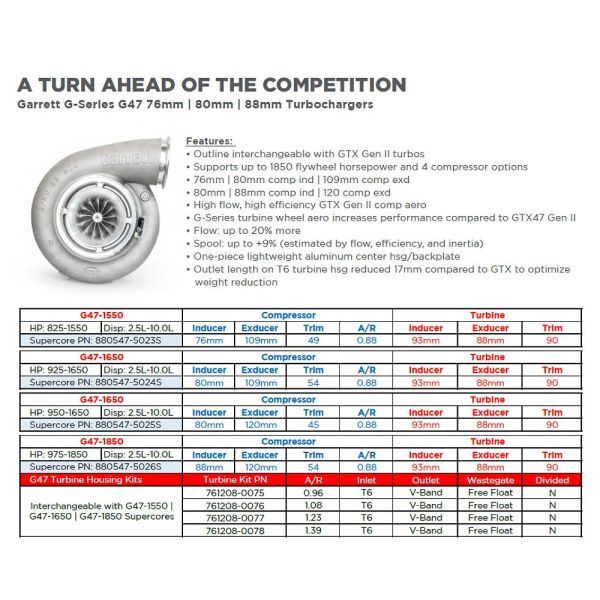

20% more turbine flow (compared to GTX) see graph below
One-piece aluminum center housing
Outline interchangeable with GTX Gen II turbos
Garrett G47 turbochargers are engineered for extreme horsepower applications. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G47 from its predecessor.
Turbine Stage: The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 20% more (Compared to GTX Gen II, see graph below). G47 is offered with four stainless steel T6 open turbine housings in .96 A/R, 1.08 A/R, 1.23 A/R and 1.40 A/R.
Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction
Spool: Up to +9% (estimated by flow, efficiency, and inertia)
Center Housing: One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.
Compressor Stage: Garrett G47 compressor stages are offered in 76mm | 80mm comp inducer | 109mm comp exducer along with 80mm | 88mm comp inducer | 120 comp exducer, with their own horsepower ratings indicated in the model name.
More Information
| Part Number | 880547-5024S |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 45.000000 |
| G Series Horsepower Range | G47-1650 80mm (825-1650HP) |
