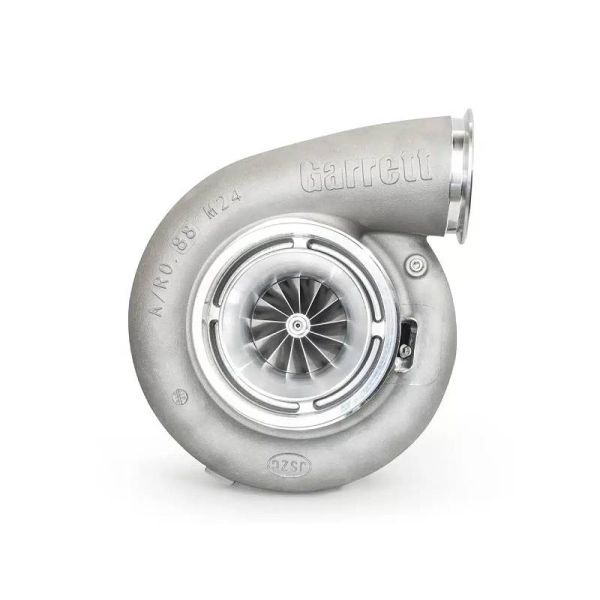

Garrett G50-1700 80mm/109mm G Series Turbo
Found it for less but value our service?
Details
Garrett G50-1700 80mm/109mm G Series Turbocharger - 1700HP - 880547-5027S
Garrett G50-1700 G Series Features:
• Outline interchangeable with GTX Gen II turbos
• Supports up to 1700 flywheel horsepower
• 80mm | comp ind | 109mm comp exd
• High flow, high efficiency GTX Gen II comp aero
• G-Series turbine wheel aero increases performance compared to GTX47 Gen II
• Flow: up to 23% more
• Spool: up to +12% (estimated by flow, efficiency, and inertia)
• One-piece lightweight aluminum center hsg/backplate
• Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction
G50-1700 Part Number: 880547-5027S
G Series G50 is available in 2 configurations. 80mm 109mm | 88mm 120mm compressor measurements. All G-Series G50 models are interchangeable meaning the supercore can be swapped into any turbine housing out without having to reconfigure any other turbo kit parts.
Turbine Stage: G-Series G50 turbine housing kits are available in four A/R. 0.96 A/R | 1.08 A/R | 1.23 A/R | 1.39 A/R stainless steel housings with T6 inlet flange. The 1.39 A/R T6 turbine housing flows 67 LBS/MIN of air which is a 23% increase over the GTX50 turbine wheel.
Spool: Up to +9% (estimated by flow, efficiency, and inertia)
Center Housing: One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.
WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately.
More Information
| Part Number | 880547-5027S |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 45.000000 |
| G Series Horsepower Range | G50-1700 80mm (875-1700HP) |
