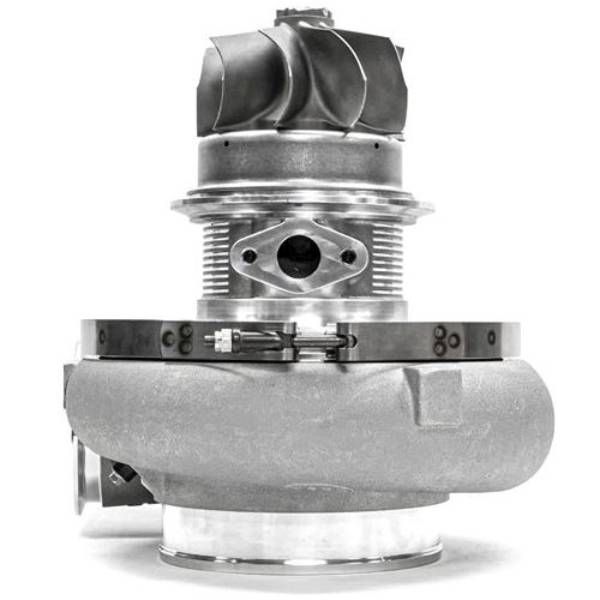

Garrett G55-2900 106mm G Series Supercore - 880547-5022S
TAGS: Garrett G55-2900 106mm G Series Supercore - 880547-5022S, 3000HP
Details
Garrett G55-2900 106mm G Series Supercore - 880547-5022S
G55 G Series Features:
• Supports up to 3000 horsepower
• 106mm compressor inducer | 133mm compressor exducer
• 112mm turbine inducer | 106mm turbine exducer
• 15% more turbine flow (compared to GTX) see graph below
• One-piece aluminum center housing
• 16mm ceramic dual ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
• Stainless Steel turbine kit sold individually.
• T6 Inlet: 1.00 A/R, 1.12 A/R, 1.24 A/R, 1.40 A/R
• V-Band Inlet: 1.24 A/R, 1.40 A/R
Garrett G55-2900 106mm Description:
G55-2900 106mm Super Core, G55 Turbo without turbine housing. P/N: 880547-5022S
Garrett G55 turbochargers are engineered for extreme horsepower applications like Radial vs The World and X275 Drag Racing. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G55 from its predecessor.
Applicable Garrett G55-1850 Part#s: 880547-5022S, 761208-0069, 761208-0070, 761208-0071, 761208-0072, 761208-0073, 761208-0074
Turbine Stage:
The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 15% more (Compared to GTX Gen II, see graph below). Larger 106mm turbine exducer (+4mm compared to GTX55). G55 is offered with two stainless steel V-band turbine housings in 1.24 A/R and 1.40 A/R. The open T6 turbine housing is also available in 4 different A/R sizes: 1.00, 1.12, 1.24, and 1.40.
Center Housing:
One-piece aluminum center housing reduces supercore weight. The center housing is air cooled, features a 16mm dual ceramic ball bearing for premium rotor dynamics, and retains the oil inlet and outlet specifications from previous GTX designs.
Compressor Stage:
Garrett G55 compressor stages are offered in 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, and 106mm inducer sizes each with their own horsepower ratings indicated in the model name.
More Information
| Part Number | 880547-5022S |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 50.000000 |
| G Series Horsepower Range | G55-2900 106mm (1000-2900HP) |
