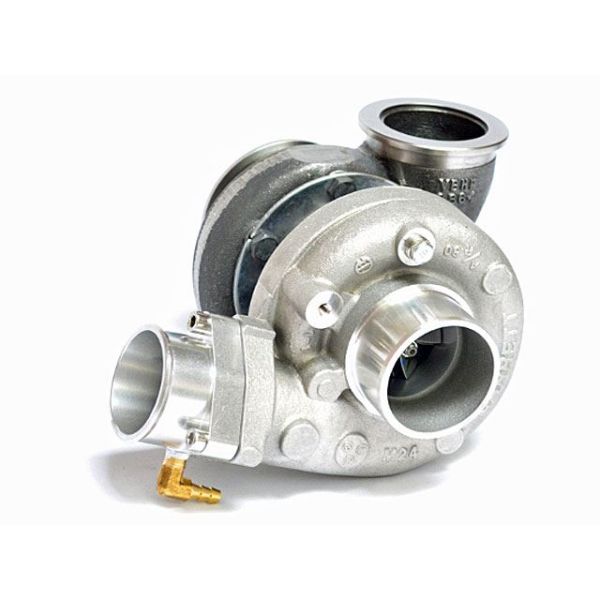

Garrett GT2560R Dual Ball Bearing Turbo - Compact - w- V-band Turbine Housing
Details
Garrett GT2560R Dual Ball Bearing Turbo - Compact - w- V-band/V-Band Turbine Housing
PRODUCT DESCRIPTION:
Dual Ball Bearing GT2560R (aka GT28R) Turbo assembly with V-band Inlet and V-band Outlet turbine housing in .64 A/R. Includes compressor housing outlet adapter (3 bolt to 2" diameter outlet).
Excellent response turbo for 2-4 Cylinder applications - 150-280HP
This unit is usually in stock and ships withing 1-2 days.
PRODUCT SPECIFICATIONS:
* 310HP Flow capacity
* Compressor Wheel Inducer: 46.5mm
* Compressor Wheel Exducer: 60.1mm
* Compressor Wheel Map: Maps
* Compressor Housing: .60 A/R
* Turbine Wheel Inducer: 53mm
* Turbine Wheel Exducer: 41.7mm
* Turbine Wheel Map: Maps
* Turbine Housing: Externally gated, V-band Inlet & V-band Outlet, and .64 A/R
APPLICABLE GARRETT PART NUMBERS:
466541-5001S
466541-0001
466541-1
466541-5004S
466541-0004
466541-4
More Information
| Part Number | 466541-5001S, 466541-0001, 466541-1, 466541-5004S, 466541-0004, 466541-4 |
|---|---|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Length | 10.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 25.000000 |
