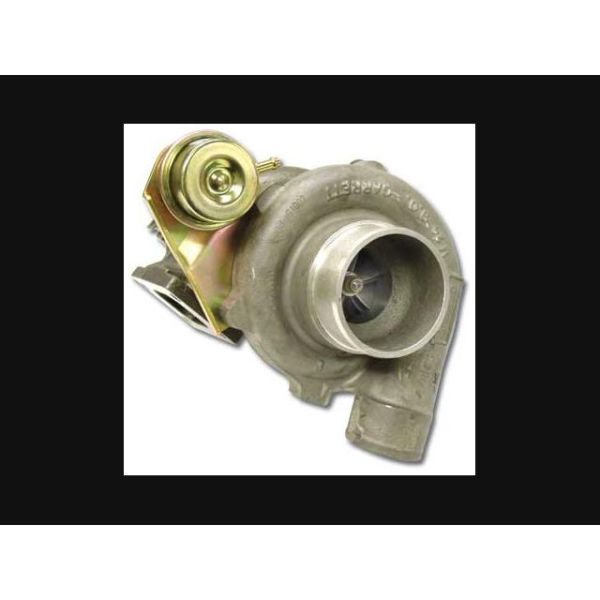

Garrett GT2871R Ball Bearing Turbo (48 Trim)
Details
Garrett GT2871R Ball Bearing Turbo (48 Trim)
Special 48 trim compressor version of the Dual Ball Bearing GT2871R turbo assembly with T25 style turbine inlet. Comes with internal wastegate pre-assembled when purchased with T25 style housing.
Applicable Garrett Part Numbers: 743347-5001S, 743347-1, 743347-5003S, 743347-3
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Price | Inlet | Outlet | A/R | Type | |
| No Extra Cost | T25 | 5 Bolt | .64/.86 | Internal Wastegate |  |
| No Extra Cost | T3 | 4 Bolt | .63/.82 | External Wastegate |  |
| No Extra Cost | T3 | 5 Bolt | .63/.82 | External Wastegate |  |
| No Extra Cost | K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
| $150.00 Extra | Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate |  |
| No Extra Cost | T25 | T31 V-Band | .63/.82 | External Wastegate |  |
| No Extra Cost | T25 | 5 Bolt | .72 | External Wastegate |  |
| $389.29 Extra | Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist |  |
More Information
| Part Number | 743347-5001S, 743347-1 |
|---|---|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 30.000000 |
Reviews
Fitment
Garrett GT2871R Ball Bearing Turbo (48 Trim)
Special 48 trim compressor version of the Dual Ball Bearing GT2871R turbo assembly with T25 style turbine inlet. Comes with internal wastegate pre-assembled when purchased with T25 style housing.
Applicable Garrett Part Numbers: 743347-5001S, 743347-1, 743347-5003S, 743347-3
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Price | Inlet | Outlet | A/R | Type | |
| No Extra Cost | T25 | 5 Bolt | .64/.86 | Internal Wastegate | |
| No Extra Cost | T3 | 4 Bolt | .63/.82 | External Wastegate | |
| No Extra Cost | T3 | 5 Bolt | .63/.82 | External Wastegate | |
| No Extra Cost | K24/K26 | 4 Bolt | .63/.82 | External Wastegate | |
| $150.00 Extra | Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate | |
| No Extra Cost | T25 | T31 V-Band | .63/.82 | External Wastegate | |
| No Extra Cost | T25 | 5 Bolt | .72 | External Wastegate | |
| $389.29 Extra | Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist | |
