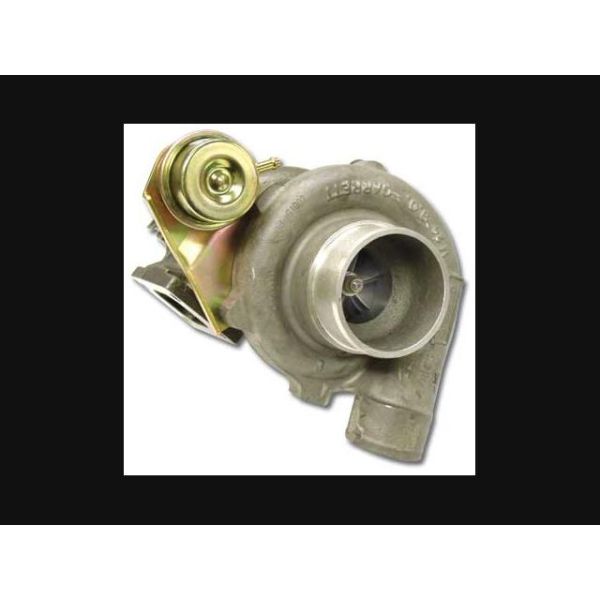

Garrett GT2871R Ball Bearing Turbo (56 Trim)
Details
Garrett GT2871R Ball Bearing Turbo (56 Trim)
Dual Ball Bearing GT2871R turbo assembly with T25 style turbine inlet. Comes with internal wastegate pre-assembled when purchased with T25 style housing.
Optional "T3/T4 drop-in" style turbine housing available for an easy retrofit into older T3 based applications where T3 turbine the inlet flang is required and either internal or external wastegate are used (internal wastegate assembly is not included when ordering T3/T4 drop-in configuration).
This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 400HP. The external packaging of this turbo is identical to that of the GT28RS and can be a nice stealthy upgrade to step up to 400HP of flow without much re-arrangement.
Compressor Wheel Exducer: 71mm
Compressor Wheel Inducer: 53mm
Compressor Wheel Trim: 56
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 47mm
Turbine Wheel Trim: 76
Applicable Garrett Part Numbers: 743347-5001S, 743347-5002S, 743347-5003S, 743347-5004S, 743347-5001, 743347-5002, 743347-5003, 743347-5004, 743347-1, 743347-2, 743347-3, 743347-4, 836026-5020S
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options *more in options menu | |||||
| Inlet | Outlet | A/R | Type | ||
| T25 | 5 Bolt | .64/.86 | Internal Wastegate |  |
|
| T3 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| T3 | 5 Bolt | .63/.82 | External Wastegate |  |
|
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate |  |
|
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
|
| T25 | 5 Bolt | .72 | External Wastegate |  |
|
| Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist |  |
|
More Information
| Part Number | 836026-5020S, 836026-5021S, 743347-5002S, 743347-2, 836026-5020S |
|---|---|
| Part Includes |
|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 20.000000 |
