Garrett GTX2860R Dual Ball Bearing Turbo
Details

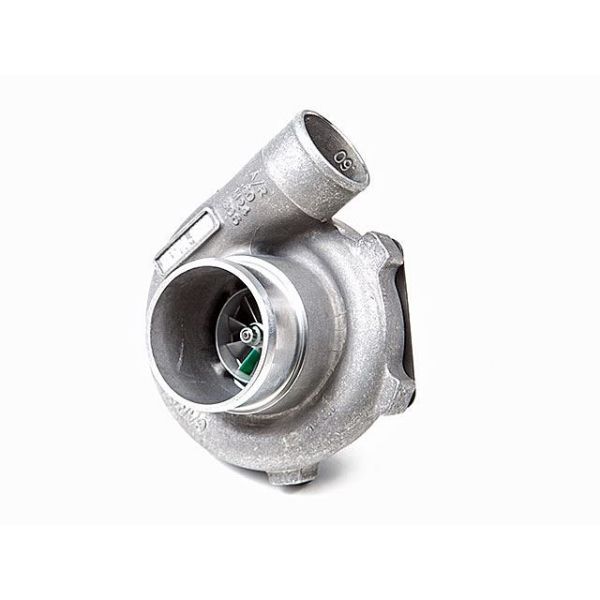

Garrett GTX2860R Dual Ball Bearing Turbo
Garrett GTX2860R Billet Wheel Turbocharger (200 - 400HP | 1.4L - 2.5L):
- 10%+ Gain in flow over traditional GT compressor wheel designs.
- 10%+ Higher pressure ratio over traditional GT compressor wheel designs.
- 11 Full-blade design for improved efficiency and ultra quiet operation.
- Forged, fully-machined compressor wheel featuring next gen aerodynamics.
- Dual ball bearing, oil & water-cooled CHRA.
- Ported shroud compressor housing to increase surge resistance.
- Outline interchageable with GTX2860R.
- GTX2860R includes the CHRA & compressor housing. Sold without turbine housing, select housing to the right or use your current GTX2860R housing.
APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT2860R and GT series turbochargers
* Available as a direct drop-in replacement to existing GT2860R series turbochargers without any modifications!
* Actuator and bracket sold separately
Applicable Garrett Part Numbers: 836040-5002S, 816364-5001S, 816364-1, 446179-0092
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | ||||
| Inlet | Outlet | A/R | Type | |
| T25 | 5 Bolt | .64/.86 | Internal Wastegate |  |
| T3 | 4 Bolt | .63/.82 | External Wastegate |  |
| T3 | 5 Bolt | .63/.82 | External Wastegate |  |
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
| Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate |  |
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
| T25 | 5 Bolt | .72 | External Wastegate |  |
| Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist |  |
More Information
| Part Number | 816364-5001S, 816364-1 |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Series |
| Engine Fitment | 1.4L-2.5L (200HP-400HP) |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 30.000000 |
