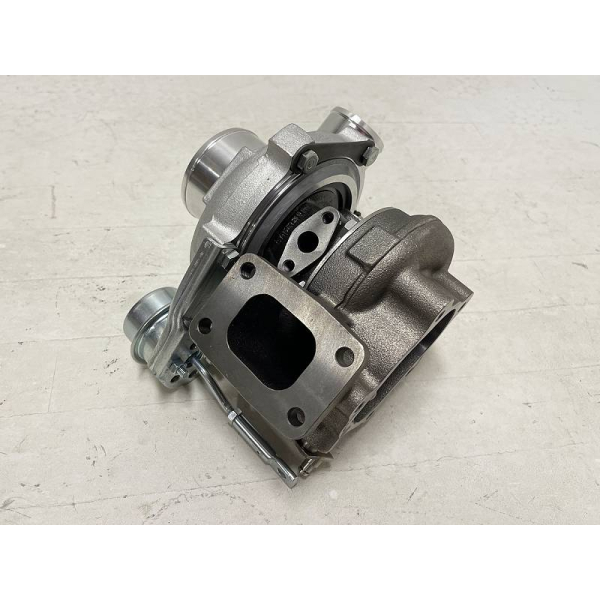

Garrett GTX2860R Gen 2 T25 .86ar 5 Bolt IWG Ball Bearing Turbo
TAGS: GTX2860R Gen 2 Turbo, T25, .86ar, 5 Bolt, Internal Wastegate, Gen II, Garrett, 475HP, 849894-5001S
Details
Garrett GTX2860R Gen 2 T25 .86ar 5 Bolt IWG Ball Bearing Turbo
This is a GENUINE Garrett GTX2860 Gen 2 Supercore mated to our Generic T25, .86AR, 5 Bolt IWG Turbine housings saving you hundreds over the brand name versions.
GEN 2 GTX2860R DESCRIPTION:
Garrett GEN II GTX2860R dual ball bearing turbocharger (turbine housing sold separately). Advanced GEN II (Gen2) billet compressor wheel capable of 475HP! The Garrett GEN 2 (GEN II) GTX2860R fits turbine housings for Garrett GT28 and GTX28 series turbochargers with a 54mm inducer and 76 trim turbine wheel. Normally In Stock, Shipping Daily!
GTX2860R GEN 2 SPECIFICATIONS:
•Compressor Wheel Inducer: 46mm
•Compressor Wheel Exducer: 60mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 54mm
•Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
APPLICABLE GARRETT PART#s:
•849894-5001S
GARRETT GTX GEN 2 FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
More Information
| Part Number | 849894-5001S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 1.4L-2.5L (200HP-475HP) |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
