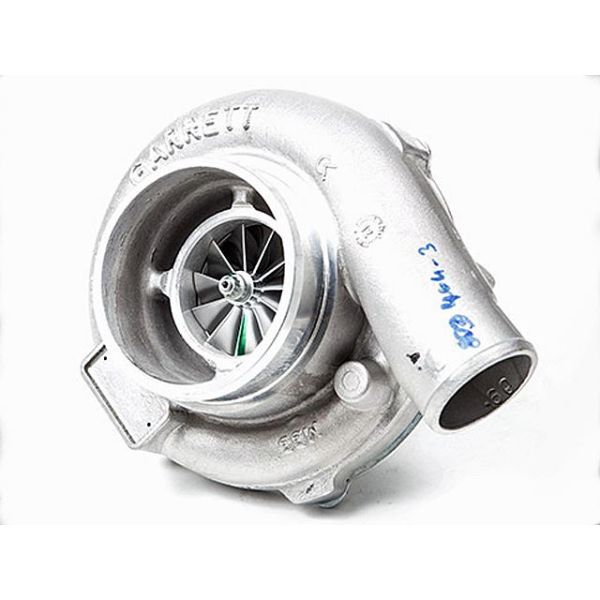

Garrett GTX2871R Dual Ball Bearing Turbo
Details
Garrett GTX2871R Dual Ball Bearing Turbo
PRODUCT DESCRIPTION:
New GTX2871R dual ball bearing turbo with ultra high flow compressor and featuring Garrett 11-Blade technology. 560HP potential flow.
**Turbine Housing NOT included and sold separately.
The GTX2871R utilizes the same turbine housing as GT2871R and all GT28 series turbochargers with a 53.9mm and 76 trim turbine wheel.
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 54.1mm
* Compressor Wheel Exducer: 71.4mm
* Compressor Wheel Trim: 58
* Turbine Wheel Inducer: 53.9mm
* Turbine Wheel Exducer: 47.0mm
* Turbine Wheel Trim: 76
* Standard compressor housing is T04E Frame with 4" inlet, 2" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
* Available as direct drop-in replacement to existing GT28 or GT30 series turbochargers without any modifications!
* Actuator and bracket sold separately
Applicable Garrett Part Numbers: 836040-5005S, 836012-5005S, 836012-5, 836040-5
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | ||||
| Inlet | Outlet | A/R | Type | |
| T25 | 5 Bolt | .64/.86 | Internal Wastegate |  |
| T3 | 4 Bolt | .63/.82 | External Wastegate |  |
| T3 | 5 Bolt | .63/.82 | External Wastegate |  |
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
| Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate |  |
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
| T25 | 5 Bolt | .72 | External Wastegate |  |
| Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist |  |
More Information
| Part Number | 836040-5005S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Series |
| Engine Fitment | 1.8L-3.0L (340HP-560HP) |
| Length | 10.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 30.000000 |
