Garrett GTX3067R Dual Ball Bearing Turbo
Details

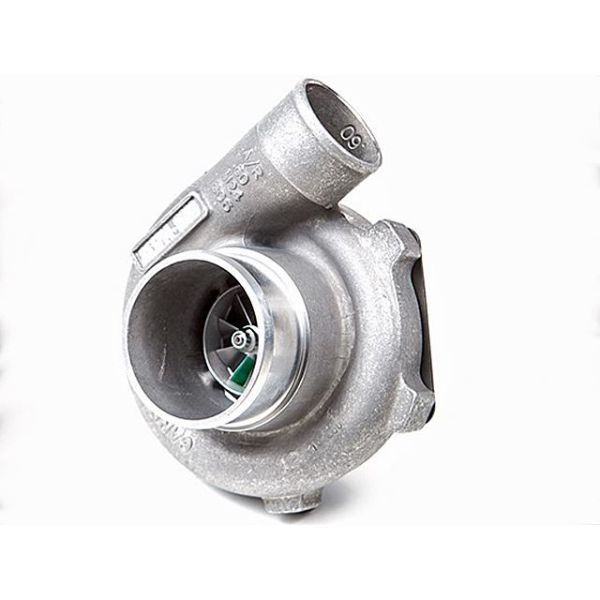

Garrett GTX3067R Dual Ball Bearing Turbo
New GTX3067R dual ball bearing turbo with ultra high flow compressor wheel featuring Garrett 11-Blade technology and a very optimized wheel ratio . **Turbine Housing is sold separately and is the same as one used on GT/GTX30 series 60mm 84 trim turbine wheel. .
** GTX turbos use same turbine housing as GT turbos and turbine housings are sold separately. The external dimensions of this turbo is the same as a base GT2871R so no changes in the engine bay is required in order to fit this turbo in its place. This GTX model also uses all the same oil and coolant fittings at the standard GT28/GT30R/GT35R turbo.**
Compressor housing is GT28 style with 3" inlet and 2" outlet but has built in anti-surge machining.
Applicable Garrett Part Numbers: 836042-5001S, 836042-1, 824727-5001S, 824727-1, 700177-0047
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | ||||
| Inlet | Outlet | A/R | Type | |
| T3 | 4 Bolt GT 3" | .63/.82/1.06 | External Wastegate |  |
| T3 | V-Band GT 3" | .63/.82/1.06 | External Wastegate |  |
| Divided T3 | V-Band | .78 | External Wastegate |  |
| T3 | 5 Bolt | .63/.82/1.06 | Internal Wastegate |  |
| T3 | 4 or 5 Bolt | .63/.82 | External Wastegate |  |
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
| Tial Stainless Steel V-Band | V-Band | .63/.82/1.06 | External Wastegate |  |
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
| T25 | 5 Bolt | .72 | External Wastegate |  |
| Undivided T4 | V-Band | 1.06 | External Wastegate |  |
| Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
| T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
| Divided T3 | GT V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
| Undivided V-Band | V-Band | 1.01 | External Wastegate/Ni-Resist |  |
| Undivided V-Band | V-Band | .61/.83 | External Wastegate/Ni-Resist | |
| Divided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
More Information
| Part Number | 824727-5001S, 824727-1, 836042-5001S, 836042-1 |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Series |
| Engine Fitment | 1.8L-3.0L (275HP-500HP) |
| Length | 10.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 30.000000 |
