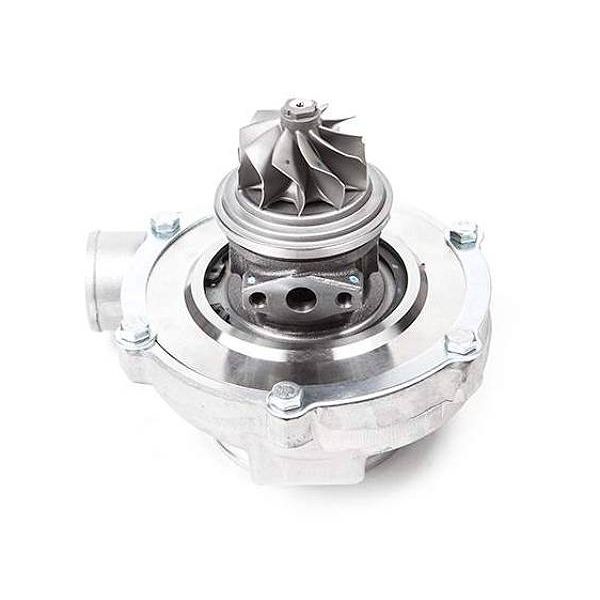

Garrett GTX3071R Gen 2 Supercore
Details
Garrett GTX3071R Gen 2 Supercore, 851154-5002S,836042-5002S
GTX3071R GEN 2 SPECIFICATIONS:
•Compressor Wheel Inducer: 54mm
•Compressor Wheel Exducer: 71mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 60mm
•Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
APPLICABLE GARRETT PART#s:
•851154-5002S, 836042-5002S
GARRETT GTX GEN 2 FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
More Information
| Part Number | 851154-5002S,836042-5002S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 1.8L-3.0L (340HP-650HP) |
| Length | 12 |
| Width | 12 |
| Height | 12 |
| Weight | 10.000000 |
Reviews
Fitment
Garrett GTX3071R Gen 2 Supercore, 851154-5002S,836042-5002S
GTX3071R GEN 2 SPECIFICATIONS:
•Compressor Wheel Inducer: 54mm
•Compressor Wheel Exducer: 71mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 60mm
•Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
APPLICABLE GARRETT PART#s:
•851154-5002S, 836042-5002S
GARRETT GTX GEN 2 FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
