Garrett GTX3071R Gen 2 Turbo
TAGS: Garrett GTX3071R Gen 2 Turbo, GEN II, Garrett, 650HP, 851154-5002S
Details

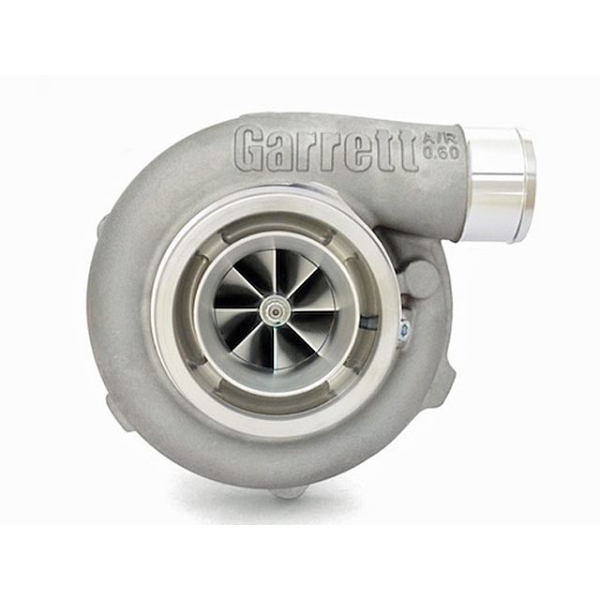

Garrett GTX3071R Gen 2 Turbo - 851154-5002S
GEN2 GTX3071R DESCRIPTION:
Garrett GEN II GTX3071R dual ball bearing turbocharger (turbine housing sold separately). Advanced GEN II (Gen2) billet compressor wheel capable of 650HP! The Garrett GEN II (Gen2) GTX3071R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel. Normally In Stock, Shipping Daily!
GTX3071R GEN 2 SPECIFICATIONS:
•Compressor Wheel Inducer: 54mm
•Compressor Wheel Exducer: 71mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 60mm
•Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
APPLICABLE GARRETT PART#s:
•851154-5002S
GARRETT GTX GEN 2 FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Inlet | Outlet | A/R | Type | ||
| T3 | 4 Bolt GT 3" | .63/.82/1.06 | External Wastegate |  |
|
| T3 | V-Band GT 3" | .63/.82/1.06 | External Wastegate |  |
|
| Divided T3 | V-Band | .78 | External Wastegate |  |
|
| T3 | 5 Bolt | .63/.82/1.06 | Internal Wastegate |  |
|
| T3 | 4 or 5 Bolt | .63/.82 | External Wastegate |  |
|
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| Tial Stainless Steel V-Band | V-Band | .63/.82/1.06 | External Wastegate |  |
|
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
|
| T3 | 5 Bolt 44mm EWG | .72 | External Wastegate |  |
|
| Undivided T4 | V-Band | 1.06 | External Wastegate |  |
|
| Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
|
| T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
|
| Divided T3 | GT V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
|
| Undivided V-Band | V-Band | 1.01 | External Wastegate/Ni-Resist |  |
|
| Undivided V-Band | V-Band | .61/.83 | External Wastegate/Ni-Resist | |
|
| Divided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
|
More Information
| Part Number | 851154-5002S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 1.8L-3.0L (340HP-650HP) |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 22.000000 |
