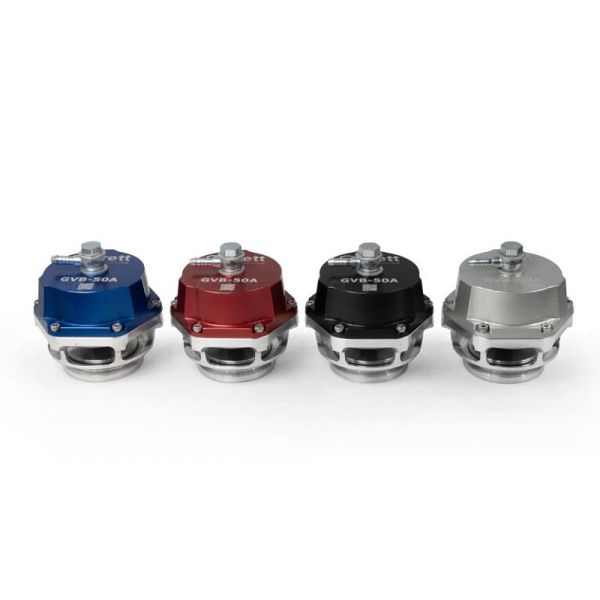

Garrett GVB-50 Blow Off Valve, BOV, 50mm
Details
Garrett GVB-50 Blow Off Valve, 50mm, BOV, Bypass Valve, Recirculation, GVB-50A, GVB-50R
Utilizing advanced Aerospace technology, Garrett performance external wastegates offer superior reliability and control over your engine’s exhaust gasses. The GVW product line is engineered and manufactured by Garrett Advancing Motion.
Garrett GVB Blow-Off Valve Features:
* Recirculating and Vent to atmosphere housing options
* CFD tested for maximum flow and thermal efficiency
* Replaceable components to increase service life
* Robust design for easy diaphragm replacement
* 6061 Anodized aluminum actuator cover and fully-machined billet housing
* Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
* Four outlet adapters for the recirculating valve. Adapters sold separately
* Four Colors: Red | Blue | Black | Silver
* Base pressure 0.7 Bar | 10 PSI (blue and white spring installed)
* Springs | Fittings | Flanges | V-Bands included
* Configurable springs settings include: 3 | 4 | 6 | 7 | 9 | 10 | 12 | 13 PSI
* Wrought Aluminum Alloy Weld Flange
* 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
* Plated stem and bushing for lowered friction and wear resistance
* High temp nomex reinforced diaphragm
* Stainless steel fittings and fasteners
GVB-50 Material Data:
* Valve Housing: Fully-machined billet
* Diaphragm: High temp Nomex reinforced elastomer
* Actuator Cover: Fully-machined anodized 6061 aluminum
* Valve Bushing: Hard-anodized wrought aluminum alloy
* Valve: high temp stainless steel with plated stem
* V-Band: CNC machined 304 stainless steel
* Flanges: Fully-machined 304 stainless steel
* Springs: 17/7 PH stainless steel
GVB-50 Blow-Off Valves include all the following parts:
* Springs (Installed: blue, white, Spare: red, green, brown)
* V-Band Assembly: (V-Band, bolt, nut)
* Inlet Flange and O-Ring
* Air Fitting Hardware (nuts, bolts, washers, banjo fitting)
Blow-Off Valves Springs
GVB-50 blow-off valves are set to .7 Bar | 10 PSI of base pressure and can be configured from 0.2 Bar | 3 PSI – .9 Bar | 13 PSI
*Use the chart to reference spring color and identify Garrett GVB blow-off valve spring pressures
More Information
| Part Number | 914956-0001, 914956-0002, 914956-000c, 914956-0004, 914959-0001, 914959-0002, 914959-0003, 914959-0004 |
|---|---|
| Brand | Garrett |
| Type of Part | Blow Off Valves |
| Length | 8 |
| Width | 8 |
| Height | 6 |
| Weight | 5.000000 |
