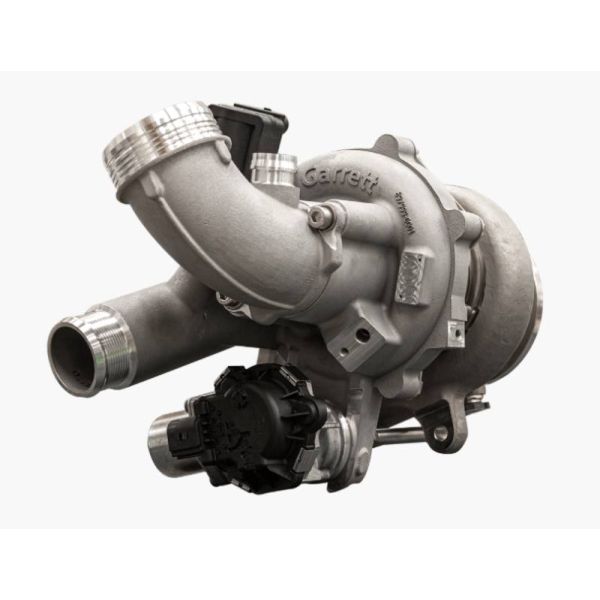

Garrett PowerMax Stage 1 2.0T TSI Turbo Upgrade
TAGS: 2.0T TSI Turbo Upgrade, 2015, 2016, 2017, 2018, Audi, A3, S3, TT, Volkswagen Golf, Golf R and GTI, 2.0T TSI, Garrett, PowerMax, 898199-5001W
Details
PowerMax™ Direct Fit Performance Turbocharger 2014 – 2021 Volkswagen Golf R, Golf, GTi / Audi S3, TT 2.0L TSI MK7 | 7.5 Stage 1 Turbo Upgrade - 898199-5001W
Garrett PowerMax™ turbocharger upgrades for the 2015-2018 Audi/Volkswagen 2.0L TSI engine platform is engineered to increase engine performance while maintaining OEM installation specifications. Stage 1 (485 BHP*) and Stage 2 (600 BHP*) upgrades maximize efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.
Stage 1 Features:
• Direct-Fit Stage 1 Upgrade
• 485HP | 362kW
• 47mm compressor inducer, 60mm compressor exducer
• 50mm turbine inducer, 45mm turbine exducer
• GT2260S turbocharger
• Audi A3, S3, TT, TTS
• VW Golf Base, AllTrack, GTI and R
• Complete assembly with calibrated electric actuator and ancillary components for OE fitment
• 485 flywheel horsepower capability (on-vehicle results)
• +17% flow compared to IS38 turbo (stock Golf R)
• GTX Gen II compressor wheel aero
• Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
• Stainless steel turbine housing rated for up to 1050C
• Fully machined speed sensor port
• Latest generation of journal bearing rotor group
• 360-degree thrust bearing –reinforced for application
Stage 1 Part Number:
898199-5001W Supports up to 485 BHP (362kW)*
OE Turbocharger Part Numbers:
IS12 - 06K124713L
IS20 - 06K145875M
IS38 - 06K145722H
Performance Results Based on the Following (See DYNO Charts):
• AUDI TT 2.0 TFSI (EA888 Gen 3)
• Garrett PMAX Stages 1 and 2 upgrade turbos
• Larger intercooler
• Custom exhaust system
• Reinforced pistons -lowered compression ratio of 9.2:1
• Upgraded fuel system -larger high pressure fuel pump and larger injectors
• Transmission upgrades -software upgrade only
• Cylinder head upgrades -valve springs only
• Fuel -102 octane unleaded (Stage 2 also run with ethanol mixture)
| PowerMax PN | Stage | Power | Model | Comp Ind | Comp Exd | Turb ind | Turb Exd |
|---|---|---|---|---|---|---|---|
| 898199-5001W | Stage 1 | 485HP | 362kW | GT2260S | 47mm | 60mm | 50mm | 45mm |
Garrett PowerMax Stage 1 2.0T TSI Turbo Upgrade for 2015-2018 Audi A3, S3, TT, VW Golf, Golf R & GTI 2.0T TSI - 898199-5001W is a direct fit performance turbocharger kit that are engineered for increased engine performance while maintaining OEM direct fitment. With professional engine calibration and tuning, the optimized compressor aero will increase flow and outperform the stock turbocharger.
WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
More Information
| Part Number | 898199-5001W |
|---|---|
| Brand | Garrett |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 2.0 TSI |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 38.000000 |
