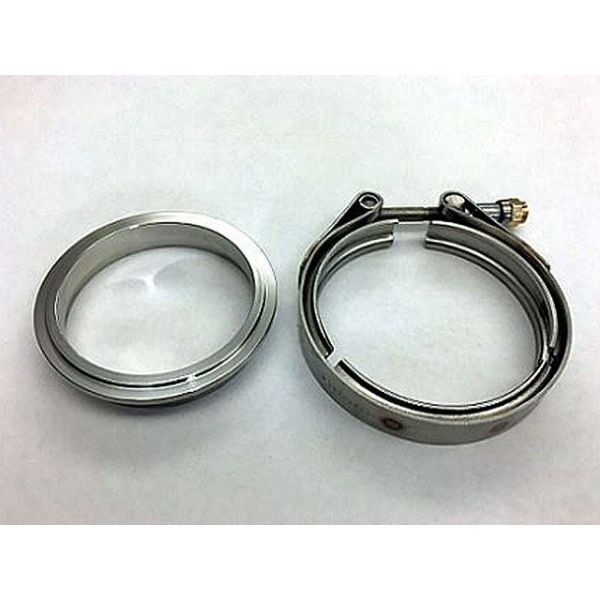

Garrett T31 2.5" V-Band Stainless Flange & Clamp Set
Details
SIMPLIFIED Flange, 2.5" / T31 V-Band STAINLESS STEEL (3.10" OD flange, Grooved for 2.5" OD Tube)
STAINLESS Steel - V-band Flange Machined for 2.5" Tube, Use 2 of these with the 2.5" V-Band Clamp for nice exhaust joint without the need for gasket. CNC machined from solid billet stock so this flange is very durable compared to most sheet metal/tubing rolled tubes.
V-Band Clamp - 2.5" / T31 for 3.10" OD Flanges
Heavy duty stainless steel V-Band clamp for turbo discharge setups or to mate (2) of our 2.5" v-band flanges. This clamp is made from Stainless Steel. 2.50" refers to the tube diameter and this clamp is used for industry standard 2.5" v-band flanges that have an outer edge of about 3.1". 2.5" refers to the outer diameter of the tube used on this size vband flange.
More Information
| Part Number | ATP-FLS-169, CLC-CLA-012 |
|---|---|
| Brand | ATP Turbo |
| Type of Part | Turbo VBands |
| Length | 8 |
| Width | 6 |
| Height | 6 |
| Weight | 1.000000 |
Reviews
Fitment
SIMPLIFIED Flange, 2.5" / T31 V-Band STAINLESS STEEL (3.10" OD flange, Grooved for 2.5" OD Tube)
STAINLESS Steel - V-band Flange Machined for 2.5" Tube, Use 2 of these with the 2.5" V-Band Clamp for nice exhaust joint without the need for gasket. CNC machined from solid billet stock so this flange is very durable compared to most sheet metal/tubing rolled tubes.
V-Band Clamp - 2.5" / T31 for 3.10" OD Flanges
Heavy duty stainless steel V-Band clamp for turbo discharge setups or to mate (2) of our 2.5" v-band flanges. This clamp is made from Stainless Steel. 2.50" refers to the tube diameter and this clamp is used for industry standard 2.5" v-band flanges that have an outer edge of about 3.1". 2.5" refers to the outer diameter of the tube used on this size vband flange.
