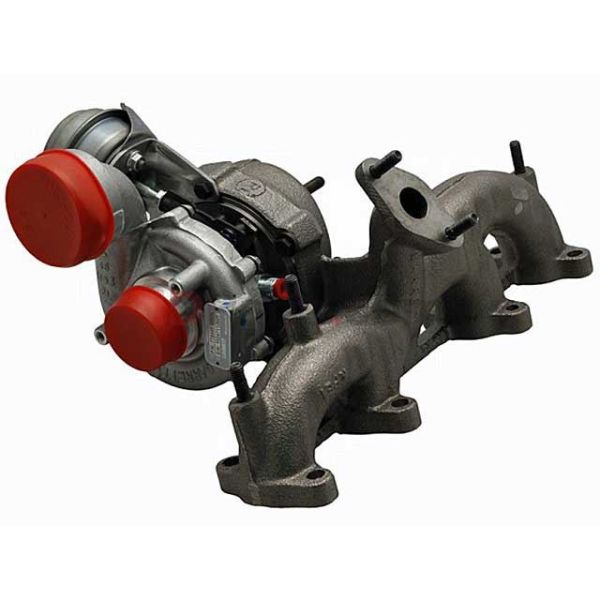

Garrett VNT-17 TDI Turbocharger
Details
Factory fresh VNT-17 turbos from Garrett. These are the OEM turbo on the European 150hp 1.9L TDI equipped Volkswagens. The VNT-17 is an upgrade from the original VNT-15 turbo allowing you to run higher boost levels and, many believe, providing superior durability. The VNT-17 bolts directly up to the head, but requires an adapter for the compressor output to match up with the stock inter-cooler pipes (clip connector hose availabe in drop down menu). Alternatively you can use the hose adapter available to connect your turbo to your original intercooler hose. If you happen to have a 99.5 ALH engine you will also need to purchase the later style pancake pipe in addition to the clip connector hose or hose adapter, which are available in the drop down menu.
This product fits the following vehicles:
Golf TDI MkIV (A4 chassis) w/ ALH engine (1999-2003)
Jetta TDI MkIV (A4 chassis) w/ ALH engine (1999-2003)
New Beetle TDI (A4 chassis) w/ ALH engine (1998-2003)
More Information
| Part Number | 721021-5006-ALH |
|---|---|
| Brand | Garrett |
| Type of Part | OEM Replacement Turbos |
| Length | 12.0 |
| Width | 11.0 |
| Height | 11.0 |
| Weight | 35.000000 |
Reviews
Fitment
Factory fresh VNT-17 turbos from Garrett. These are the OEM turbo on the European 150hp 1.9L TDI equipped Volkswagens. The VNT-17 is an upgrade from the original VNT-15 turbo allowing you to run higher boost levels and, many believe, providing superior durability. The VNT-17 bolts directly up to the head, but requires an adapter for the compressor output to match up with the stock inter-cooler pipes (clip connector hose availabe in drop down menu). Alternatively you can use the hose adapter available to connect your turbo to your original intercooler hose. If you happen to have a 99.5 ALH engine you will also need to purchase the later style pancake pipe in addition to the clip connector hose or hose adapter, which are available in the drop down menu.
This product fits the following vehicles:
Golf TDI MkIV (A4 chassis) w/ ALH engine (1999-2003)
Jetta TDI MkIV (A4 chassis) w/ ALH engine (1999-2003)
New Beetle TDI (A4 chassis) w/ ALH engine (1998-2003)
