Details

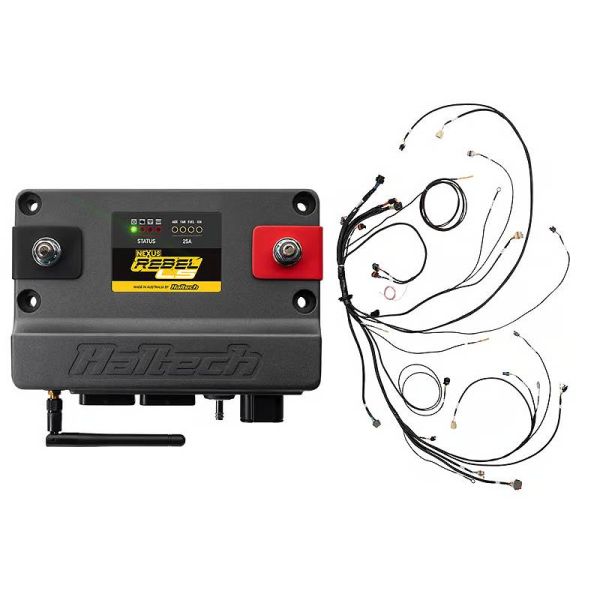

Haltech Nexus Rebel LS ECU Kit for LS Gen IV - HT-220204
- ECU designed from the ground up to suit GM's popular LS engine platform
- Start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software
- Comes complete with an easy-to-install harness to suit multiple GM LS applications
- Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
- Kit Supports Gen IV engines with drive by wire (DBW).
- HT-220001 - Rebel ECU
- HT-186500 - Main Harness
- HT-186505 - 6 Pin DBW Adaptor
- HT-186507 - Corvette pedal adaptor
- HT-186502- LS EV6 Injector Sub-Harnes
- HT-187003 - T56 Transmission Harness
- HT-186123 - 2 Pin Bosch Alternator Harness
- HT-186124 - 4 Pin Delco Alternator Harness
- HT-186125 - 2 Pin Yazaki Alternator Harness
- HT-186510 - Gen IV Oil pressure sensor adaptor harness
- HT-186511 - Gen IV MAP sensor adaptor harness
- Bosch LSU 4.9 Sensor
- Weld on fitting for O2 Sensor
- Air Temperature Sensor M14 x 1.5
- Weld on fitting for Air Temp Sensor
IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
More Information
| Part Number | HT-220201 |
|---|---|
| Brand | Haltech |
| Type of Part | Engine Management |
| Length | 14 |
| Width | 12 |
| Height | 6 |
| Weight | 14.000000 |
