Haltech Nexus S2 ECU
Found it for less but value our service?
Details

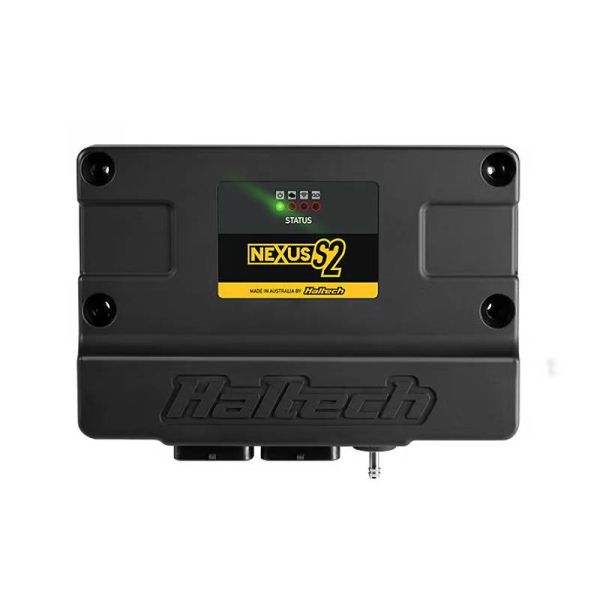

Haltech HT-212000 Nexus S2 ECU Stand Alone Engine Management
- 4 x peak/hold injector drivers (can be used as low side drive outputs)
- 4 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- On-board datalogging (128MB)
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
More Information
| Part Number | HT-212000 |
|---|---|
| Brand | Haltech |
| Type of Part | Engine Management |
| Length | 10.0 |
| Width | 10.0 |
| Height | 10.0 |
| Weight | 10.000000 |
