HPT F5 88103 Billet Ball Bearing Turbo - 2000HP
TAGS: HPT F5 88103 Turbo, 4 Year Warranty, HPT Turbochargers, Billet, Ball Bearing, T6, V-Band/V-Band
Price Match Guarantee
Found it for less but value our service?
Details

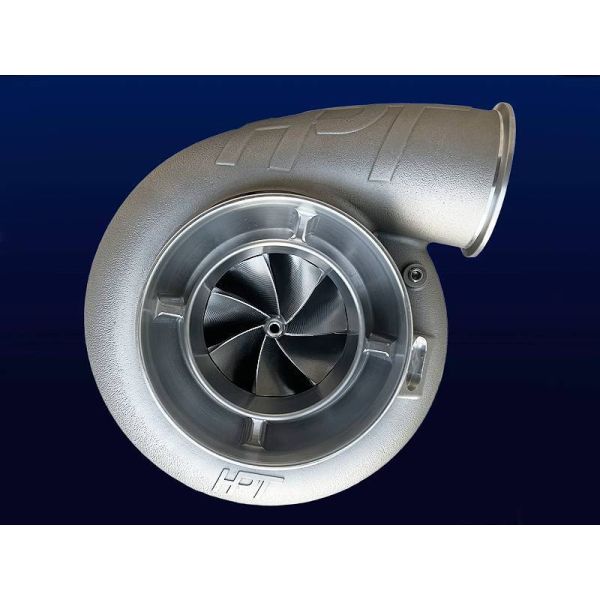

HPT F5 88103 Billet Dual Ball Bearing Turbocharger
HPT 88103 F5 Turbo Specs:
- Capable of 2000 Horsepower
- 88mm compressor wheel
- 103mm turbine wheel
- Dual Ball bearing ALUMINUM center section
- 7" Ported Inlet, 4.21" V-Band Outlet compressor housing, same as Garrett GT47 - GT55 amd Precision ProMod
Experience unrivaled performance with the F5 88103 Turbocharger. Its 2618 forged compressor wheel and air-cooled full complement ball bearing guarantee superior power delivery, while the stainless steel turbine housings and integrated backing plate ensure durability. With an aluminum center section and speed sensor provision, this turbocharger is the best in its class.
HPT F5 88103 turbochargers have been developed for increased reliability and improved performance resulting in a longer life for you, the customer!
- 2 Year Warranty Standard, 4 Year Extended Available!!!
- Improved compressor wheel and turbine wheel aerodynamics
- Modernized iron bearing housing with an integral backplate to resist backplate deflection under heavy loads!
- Large diameter dual turbine piston ring for oil and gas seal
- Stronger shaft wheel weld joint for durability
HPT F5 88103 Turbine Housing Options:
- T6 Inlet, 5" V-Band Out A/R 1.24
- T6 Inlet, 5" V-Band Out A/R 1.40
- 3.5" V-Band Inlet / 5" V-Band Outlet A/R 1.15
- 3.5" V-Band Inlet / 5" V-Band Outlet A/R 1.28
Applicable Part Numbers: F5-88103-124T6S, F5-88103-140T6S, F5-88103-115VS, F5-88103-128VS
F5 Turbine Housing Clamps:
Inlet Clamp (Fits V-Band 1.15 & 1.28 Turbine Housings)
Discharge Clamp (Fits all F5 Turbine Housings)
F5 Turbine Housing Flanges:
Inlet Flange (Fits V-Band 1.15 & 1.28 Turbine Housings)
Discharge Flange (Fits all F5 Turbine Housings)
HPT 2-Year Hassle-Free Automatic Warranty: If you hurt your HPT turbocharger, we will simply replace it. No joke, no gimmicks, no lies. If your turbocharger sucked up a rock and it damages the wheel, or if you accidentally starved it from oil, we will send you a brand new turbo. No matter the problem you are covered. We understand that turbochargers endure some wear-and-tear therefore if the turbocharger is performing, but it's a little scuffed up, greasy, etc. that does not qualify for a warranty replacement. This warranty program is specifically related to damaged turbochargers. Extendable to 4 Years with purchase of HPL Oil.
More Information
| Part Number | F5-88103-124T6S, F5-88103-140T6S, F5-88103-115VS, F5-88103-128VS |
|---|---|
| Brand | HPT Turbo |
| Type of Part | F5 Series |
| Length | 18 |
| Width | 18 |
| Height | 17 |
| Weight | 35.000000 |
