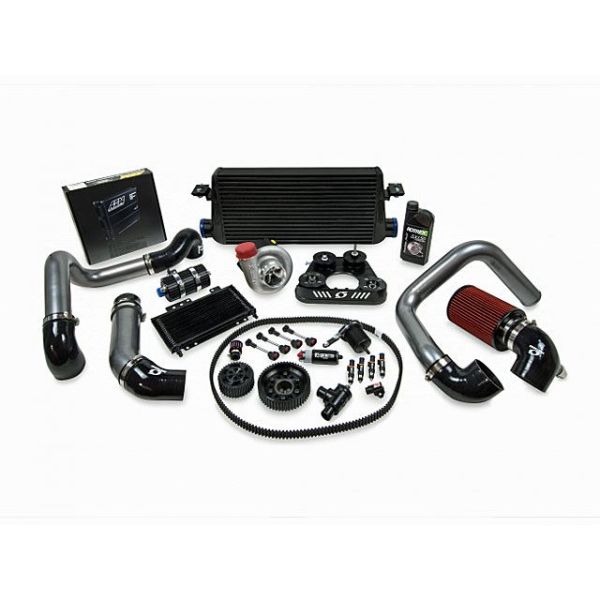

KraftWerks Supercharger System - Black Edition without Tuning Solution - Black Head Unit
NO LONGER AVAILABLE!
Details
Kraftwerks USA is pleased to introduce the newly redesigned supercharger system for the '06-'09 Honda S2000.
Centered around the highly efficient Rotrex C38-81 Supercharger, the Kraftwerks Supercharger kit produces impressive results throughout the entire power band. While unlike any other forced induction system, the Kraftwerks supercharger system provides a linear power curve, torque on demand, cooler operating temperatures, and total drivability. The Kraftwerks supercharger system provides instant throttle response and a progressive power curve that increases all the way to redline without the typical 'spiking' or 'surging' associated with turbochargers. This unique, more usable power curve results in reduced cylinder pressures, less strain on engine components, and increased reliability.
Rotrex superchargers also operate much cooler when compared to turbochargers and other supercharger systems, which reduces the engine’s intake air temperature as well as its risk of detonation. Rotrex superchargers are renowned for their compact size, high adiabatic efficiency, low vibration, and quiet operation. Their unique traction drive technology is what makes all of this possible, which, unlike other superchargers, transmits power through frictional forces between its rolling elements. Each Rotrex unit features its own self-contained oiling system that remains independent of the engine. Its dual-action oil pump supplies traction fluid to the supercharger while the supplied cooler ensures proper fluid temperatures at all times.
Like all Kraftwerks supercharger systems, the S2000 supercharger system includes all the necessary brackets, and hardware for a simple bolt-on installation.
FEATURES & BENEFITS:
410whp/ 280 lb.ft. Through Skunk2 Header and Exhaust
Retains Factory A/C and Accessories
Hondata Flash Pro Tuning Solution w/ Calibration
Grams Performance & Design 1,000cc Injectors
Plug & Play Injector Connectors
Skunk2 4 BAR MAP Sensor
Grams Performance & Design 265lph High Flow Fuel Pump
Rotrex C38-81 Supercharger w/ 90mm Pulley
Kraftwerks Exclusive Black Anodized Drive Housing
NEW 30mm Drive Belt (10mm Wider Than Previous Generation)
Independent Cogged Drive System for Zero Slip
Front Mount Intercooler (24 x 12 x 3 inch)
Aluminum Intercooler Piping
Oil Cooler
High-Quality CNC-Machined Brackets and Idler Pulley
High-Quality Fasteners and Hardware
Recirculating Bypass Valve
Simple Bolt-On Installation - No cutting, Drilling, or Welding
* Upgraded Clutch Recommended - Two Step and Rev Limiter Usage Can Void Warranty... Use at Your Own Risk.
RECOMMENDED BELT TENSION:
NEW BELT (Hz) Min: 260, Max: 275
USED BELT (Hz) Min: 215, Max: 230
More Information
| Part Number | 150-05-3000B |
|---|---|
| Brand | KraftWerks |
| Type of Part | Superchargers |
| Engine Fitment | F22 (4cyl) |
| Length | 26.0 |
| Width | 33.0 |
| Height | 26.0 |
| Weight | 100.000000 |
