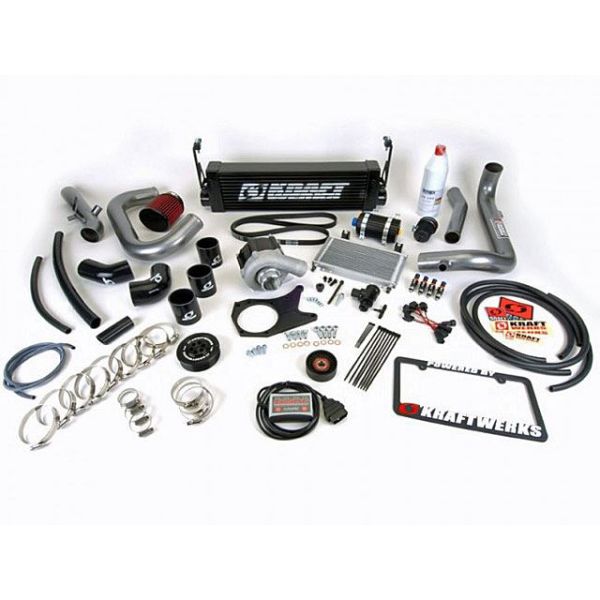

KraftWerks Supercharger System - without Tuning Solution
Details
Kraftwerks is pleased to introduce the newly redesigned supercharger system for the '06-'11 Honda Civic w/ the R18 engine.
Centered around the highly efficient Rotrex C30-74 head-unit, the Kraftwerks '06-'11 Honda Civic kit produces impressive results throughout the entire power band due to its patented traction drive technology. And, unlike any other forced induction system, the Kraftwerks supercharger system provides a linear power curve, torque on demand, cooler operating temperatures, and total drive-ability. The '06-'11 Honda Civic supercharger system provides instant throttle response and a progressive power curve that increases all the way to redline without the typical 'spiking' or 'surging' associated with turbochargers. This unique, more usable power curve results in reduced cylinder pressures, less strain on engine components, and increased reliability.
Rotrex superchargers also operate much cooler when compared to turbochargers and other supercharger systems, which reduces the engine’s intake air temperature as well as its risk of detonation. Rotrex superchargers are renowned for their compact size, high adiabatic efficiency, low vibration, and quiet operation. Their unique traction drive technology is what makes all of this possible, which, unlike other superchargers, transmits power through frictional forces between its rolling elements. Each Rotrex unit features its own self-contained oiling system that remains independent of the engine. Its dual-action oil pump supplies traction fluid to the supercharger while the supplied cooler ensures proper fluid temperatures at all times.
Like all Kraftwerks supercharger systems, the '06-'11 Honda Civic supercharger system includes all the necessary brackets, and hardware for a simple bolt-on installation.
FEATURES & BENEFITS:
200hp / 160 lbs-ft Torque with OE Header and Exhaust System
Retain Factory A/C and Accessories
Rotrex C30-74 Supercharger w/ 100mm Pulley (10psi)
Grams Performance 550cc/min. High Impedance Fuel Injectors w/ Plug-and-Play Connectors
Front Mount Intercooler (22 x 7 x 3 inch)
Aluminum Intercooler Piping
Oil Cooler
High-Quality CNC-Machined Brackets and Idler Pulley
High-Quality Fasteners and Hardware
Recirculating Bypass Valve
NOTE:
Currently for COUPE Models ONLY! · Will work with both M/T and A/T vehicles · *A/T may need to upgrade their TQ Converter for proper operation as vehicle was not designed for any increased TQ* · Upgraded Clutch recommended for M/T vehicles to properly accommodate increase TQ · Upgraded Fuel Pump recommended · Two step and rev limiter usage at your own risk, can void warranty.
More Information
| Part Number | 150-05-1400 |
|---|---|
| Brand | KraftWerks |
| Type of Part | Superchargers |
| Engine Fitment | R18 |
| Length | 25.0 |
| Width | 33.0 |
| Height | 25.0 |
| Weight | 98.000000 |
