Mitsubishi TD05 / TD06 Flatback Turbo Rebuild Kit
Details

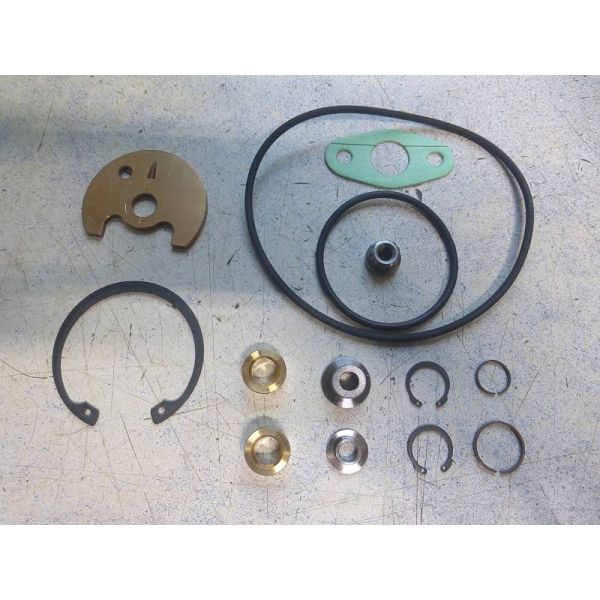

Mitsubishi TD05 / TD06 Flatback Turbo Rebuild Kit
1 - Journal Bearings
2 - Retaining Rings for Journal Bearings
3 - Piston Ring for Turbine end
5 - O-Ring for Compressor Housing
7 - Thrust Bearing
8 - O-Ring for Seal Plate
9 - Thrust Collar
10 - Oil Deflector
11 - Piston Ring for Compressor end (N/A Superback kit)
12 - Seal Plate
13 - Retaining Ring for Seal Plate
14 - Shaft Nut (Left & Right-hand Thread)
*Oil Drain Gasket (not shown in diagram)
More Information
| Part Number | TD05-6-FB-KIT |
|---|---|
| Brand | TurboKits.com |
| Type of Part | Turbo Rebuild Kits |
| Length | 10 |
| Width | 8 |
| Height | 2 |
| Weight | 1.000000 |
