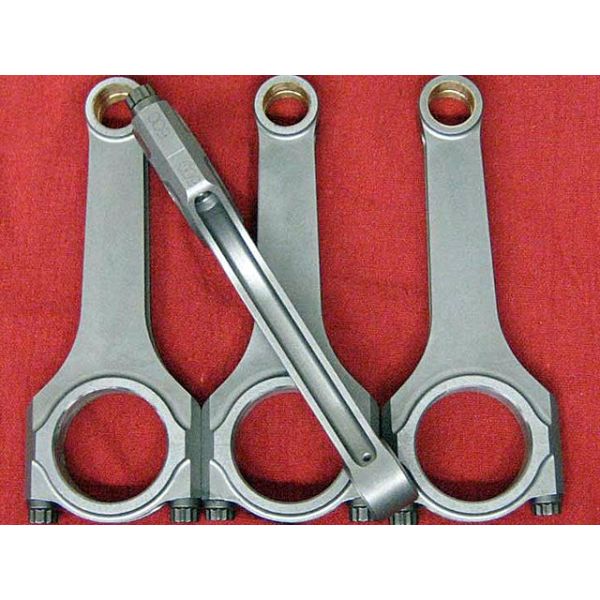

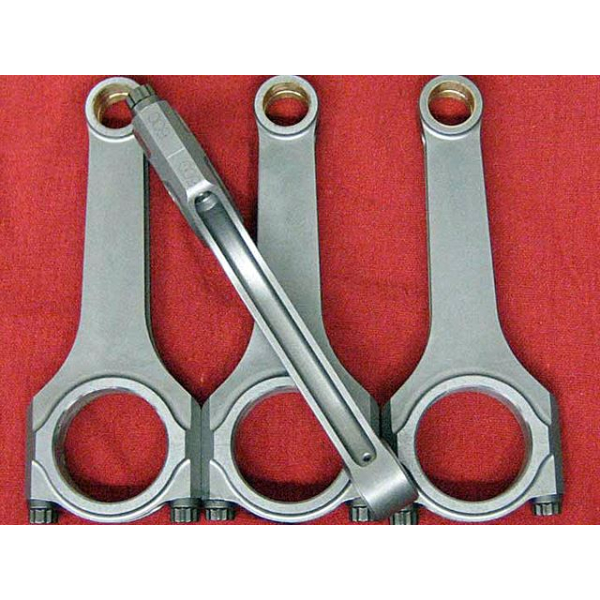

MWR 2ZR Forged Connecting Rods
TAGS: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, Toyota Corolla 2ZR, Forged Connecting Rods, 350113
Details
MWR 2ZR Forged Connecting Rods
Set of 4 rods with caps and bolts.
Fits all 2ZR-FE, 2ZR-FAE, 1ZR-FE, 1ZR-FAE engines
MWR Forged H-beam connecting rods have the strength and precision you’re looking for at a fraction of the price of other rods. Machined from a chromoly forging these rods are checked to the 10,000th of an inch for dimensional accuracy. These rods are built to handle extreme conditions and high boost levels but are still very light so they work great for NA applications as well. We use these rods in many of the race engines that we build in-house.
MWR ARP2000 rod bolts included.
Weight: 530g (stock is 466g)
Power Rating: 1000 hp+ (the rod bearings will generally fail long before this power level is reached, they are just undersized)
Torque Spec:
45 ft-lb with ARP lube
55 ft-lb with 30WT oil
Use torque sequence from the service manual. Torque only to the spec above, do NOT turn an additional 90 degrees.
More Information
| Brand | Monkey Wrench Racing |
|---|---|
| Type of Part | Engine |
| Engine Fitment | 1.8L (2ZR-FE) |
| Length | 12 |
| Width | 6 |
| Height | 6 |
| Weight | 10.000000 |
Reviews
Fitment
MWR 2ZR Forged Connecting Rods
Set of 4 rods with caps and bolts.
Fits all 2ZR-FE, 2ZR-FAE, 1ZR-FE, 1ZR-FAE engines
MWR Forged H-beam connecting rods have the strength and precision you’re looking for at a fraction of the price of other rods. Machined from a chromoly forging these rods are checked to the 10,000th of an inch for dimensional accuracy. These rods are built to handle extreme conditions and high boost levels but are still very light so they work great for NA applications as well. We use these rods in many of the race engines that we build in-house.
MWR ARP2000 rod bolts included.
Weight: 530g (stock is 466g)
Power Rating: 1000 hp+ (the rod bearings will generally fail long before this power level is reached, they are just undersized)
Torque Spec:
45 ft-lb with ARP lube
55 ft-lb with 30WT oil
Use torque sequence from the service manual. Torque only to the spec above, do NOT turn an additional 90 degrees.
