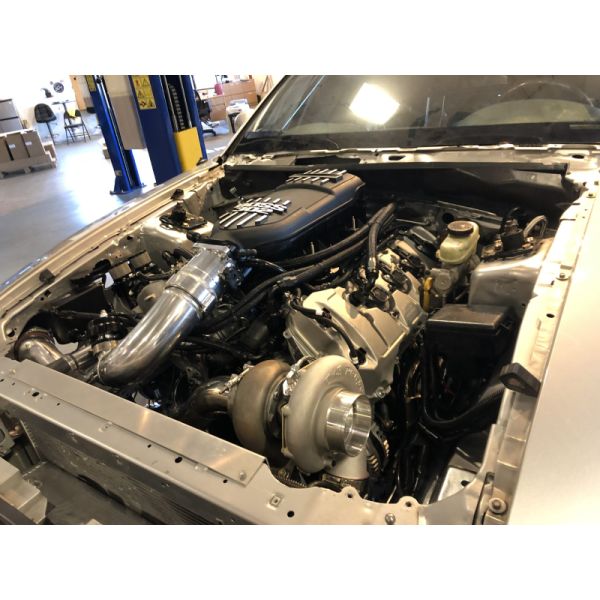

On3 Mustang Coyote Swap Complete Single Turbo Kit
Details
Complete Mustang Coyote Swap Turbo System
Proven Package, Shop Car Is Going 8.38 @ 166 With This System!!!
Each Coyote Swap Turbo Kit Includes:
- On 3 Performance Forward Tubular 4 into 1 Turbo Headers – 304ss
- On 3 Performance 7875 Turbocharger
- On 3 Performance 60mm Race-Gate (Wastegate Loaded With 7psi Spring Standard)
- On 3 Performance 3″ Bar and Plate Intercooler
- On 3 Performance Turbo Merge Pipe – 304ss
- On 3 Performance downpipe kit – 304ss
- On 3 Performance Complete Cold Side Tubing Kit
- 6061 Aluminum Coolant Tubing Set (2pc)
- On 3 Performance Complete Coupler Kit (Black)
- Full Set Of Stainless T-Bolt Clamps For Cold Side Connections(never use worm clamps)
- Complete Oil Feed Kit – For Turbocharger
- Complete Oil Drain Kit – For Turbocharger
- Stainless Steel V-Band Clamp Kit For Exhaust
This is clearly the most economical way of doing this full package and exactly how it has been tested on the On3 shop car. This is currently on an INTRO SALE price. So this will not last, if you are considering to boost your coyote swap project, dont miss this amazing deal with $1000 savings.
After On3 purchased their shop car as a roller, they decided to pick up a 2nd Gen F-150 coyote engine and get started with the swap. Being these swaps are coming down in price and people are making crazy power, they decided to offer the they developed as a production system. As you can see below, the car makes excellent power and the fit/finish is exactly what you are looking for. Headers are constructed from 304ss thick wall tubing. Designed these to fit around the UPR/Team Z k-members. Exiting the headers, we have a 2.5″ 304ss merge pipe up to the turbo which is setup with a t-4 flange. The downpipe is a 3.0″ exit from the turbo stepped to a 4″ downpipe
There are 2 options you can go with on the downpipe, one being a fender exit and one designed to go back through the k-member so you could tie into a catback exhaust system. Make sure when ordering you put in the notes the year of the car and which exhaust option you want included
Details On The Coyote Swap Turbo Kit:
In order to make everything fit the way On3 wanted, they designed around the factory Mustang location accessories. There are several places making swap accessory brackets and they wanted to keep everything in the stock location that was possible. That being said, you can still run the AC if you choose in the stock location, same goes for the alternator, tensioner, and water pump. Being these cars from the factory come with electric power steering, that is the one variable most people fight. On3 makes this easy and have tested to have a solution for this as well. Buy a Volvo S40 electric power steering pump, they can be used universally and plumb this into the hydroboost to maintain power steering/power brakes. Clearly most guys with race cars are not worried about this, but wanted to share this specific info so you can at least do your research and accomplish both PS/PB if you desire and to show it is possible.
Notes:
*When tuning with a factory ECU, most tuners will require the FIC1000 or ID1050X injectors. Please consult with your tuner before adding injectors to the order.
More Information
| Part Number | ON3-CYO-SWAP |
|---|---|
| Brand | On 3 Performance |
| Type of Part | Turbo Kits |
| Engine Fitment | 5.0L |
| Length | 42 |
| Width | 24 |
| Height | 20 |
| Weight | 105.000000 |
