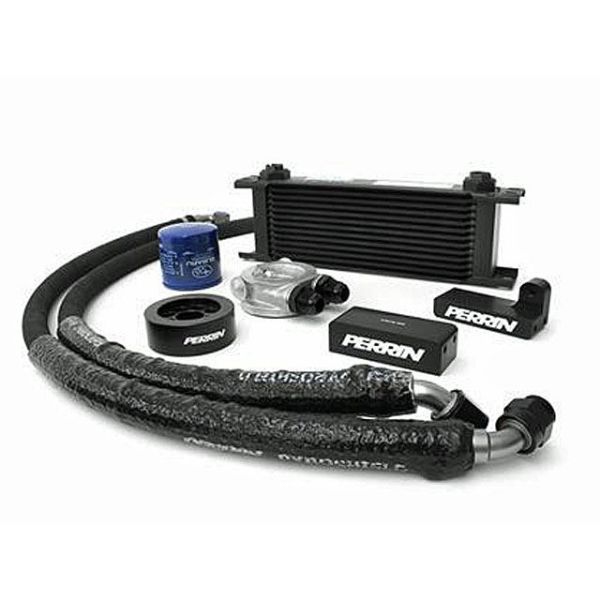

Perrin Oil Cooler Kit
Details
OVERVIEW
Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler.
CORE SPECS:
Oil Cooler Core Dimensions 13" x 4" x 2"
Core Delta PSI 4.0/4.5 PSI
Core BTU/hr Range 19,000-26,000
Additional Oil Required 1 quart
Mounting Brackets 6061 T6 aluminum
Filter Spacer 6061 T6 Aluminum
Oil Cooler Thermostat 85°C Activation Temp
Hose Size -10
Hose Construction Steel braided with elastomer cover
INCLUDES:
(1) PERRIN Oil Cooler core
(1) PERRIN Oil Filter Sandwich Adapter
(1) PERRIN Oil Filter Spacer
(1) Oil line assembly, short
(1) Oil line assembly, long
(1) Oil cooler core mounting bracket, left
(1) Oil cooler core mounting bracket, right
(2) -10 AN Fitting
(2) Dowty seal fittings
(1) Subaru oil filter
(1) Subaru oil filter adapter
(1) O-ring for oil filter spacer
(1) 14" long 3M tape strip
(1) M6 fender washer
(8) M6 button head socket cap screws
(7) M6 flat washers
(1) 1/2"-1/2" connector
(10) Zip ties
(1) PERRIN License Plate Frame
Warranty, instructions, stickers
FITMENT:
2017-2018 - Toyota 86
2013-2016 - Scion FR-S
2013-2018 - Subaru BRZ
2004-2018 - Subaru STi
2002-2018 - Subaru STi
LIFETIME WARRANTY WARRANTY
PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship for the liftime of the product. *Some exclusions apply
PROPOSITION 65
WARNING: This product can expose you to chemicals, including Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
More Information
| Part Number | PSP-OIL-110 |
|---|---|
| Brand | Perrin |
| Type of Part | Cooling |
| Length | 19 |
| Width | 13 |
| Height | 7 |
| Weight | 14.000000 |
