Details

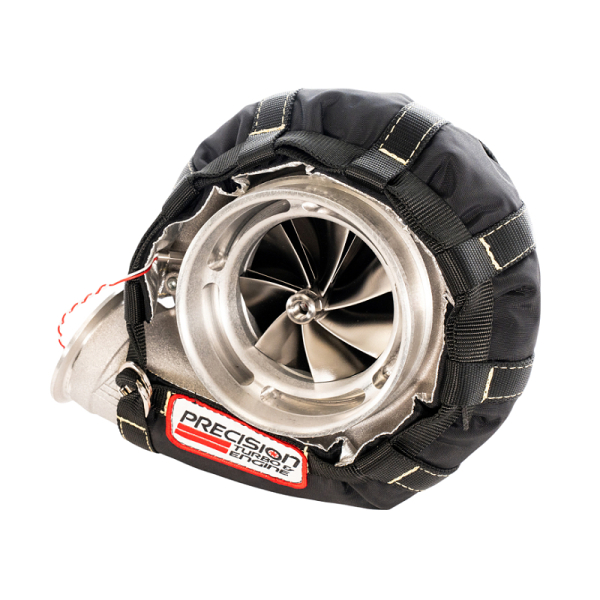

Precision NEXT Gen ProMod 111mm Ball Bearing Turbo supporting 3200HP
For the last 7 years, the Precision record setting GEN 2 110 Pro Mod XPR has proven the reliability and performance of their technology with huge records, big event wins and countless 5sec ¼ mile runs around the world. After all that success, it was time to provide the already proven Next GEN technology to the 110. Presenting the new 111 Next GEN 111 turbocharger capable of producing over 3000hp on a single turbo setup with a new compressor cover and compressor wheel aero package design.
Next Gen 111 MM ProMod Turbo Features:
- Exclusive NEXT GEN CEA® (Competition Engineered Aerodynamics) compressor wheel
- Compressor cover enhancements providing better airflow
- Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
- High flow / highly efficient 108mm CEA turbine wheel
Specifications for the NEXT Gen 111 ProMod:
- Compressor wheel inducer: 111.37 mm
- Compressor wheel exducer: 153.92 mm
- Turbine wheel inducer: 114.80 mm
- Turbine wheel exducer: 108.05 mm
- Max Shaft Speed: 89000 rpm
111MM NEXT Gen ProMOD Part Numbers:
- 58816433999 - NEXT GEN 11108 BB PROMOD CC W/ NO TURBINE HOUSING (SUPERCORE)
- 58816433429 - NEXT GEN 11108 BB PROMOD CC W/ T5 INLET/V-BAND DISCHARGE 1.12 A/R
- 58816433449 - NEXT GEN 11108 BB PROMOD CC W/ T5 INLET/V-BAND DISCHARGE 1.24 A/R
- 58816433479 - NEXT GEN 11108 BB PROMOD CC W/ T5 INLET/V-BAND DISCHARGE 1.40 A/R
- 58816433539 - NEXT GEN 11108 BB PROMOD CC W/ PROMOD V-BAND IN/OUT 1.15 A/R
- 58816433809 - NEXT GEN 11108 BB PROMOD CC W/ PROMOD V-BAND IN/OUT 1.28 A/R
- 58816633999 - NEXT GEN 11108 BB PROMOD CC MODIFIED B/HSG W/ NO TURBINE HOUSING (SUPERCORE)
- 58816633429 - NEXT GEN 11108 BB PROMOD CC MODIFIED B/HSG W/ T5 INLET/V-BAND DISCHARGE 1.12 A/R
- 58816633449 - NEXT GEN 11108 BB PROMOD CC MODIFIED B/HSG W/ T5 INLET/V-BAND DISCHARGE 1.24 A/R
- 58816633479 - NEXT GEN 11108 BB PROMOD CC MODIFIED B/HSG W/ T5 INLET/V-BAND DISCHARGE 1.40 A/R
- 58816633539 - NEXT GEN 11108 BB PROMOD CC MODIFIED B/HSG W/ PROMOD V-BAND IN/OUT 1.15 A/R
- 58816633809 - NEXT GEN 11108 BB PROMOD CC MODIFIED B/HSG W/ PROMOD V-BAND IN/OUT 1.28 A/R
ProMod 111MM NEXT Gen Fittings, Flanges, Clamps, Sensor:
- PFT047-3047: Recommended Oil Feed Fitting
- PTP074-2102/2104: Recommended Oil Drain Flange
- PTP074-3042: Compressor Cover Discharge Clamp Kit
- PTP074-1014: Turbine Housing Inlet Flange
- PTP071-1061: Turbine Housing Inlet Clamp
- PTP074-3029/3030: Turbine Housing Outlet Clamp
- PEL015-9500: Turbo Speed Sensor
*All acccesories sold separately.
More Information
| Part Number | 50905207999, 50905207089, 50905207099, 50905207109, 50905207119, 50905207129, 50905207139, 50905207149, 50905207179, 50905207189, 50905207199, 50905207209, 50905207219, 50905207239, 50905207249, 50905207279, 50905207799, 50905207889 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 18 |
| Width | 14 |
| Height | 14 |
| Weight | 45.000000 |
