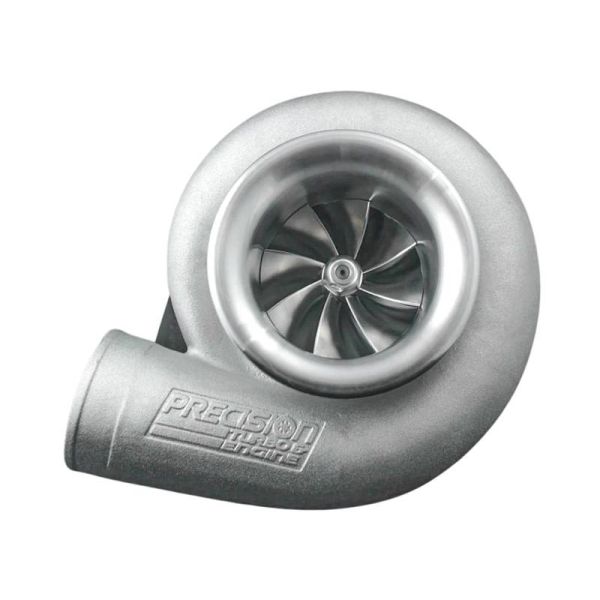

Precision NEXT Gen Large Frame 122mm / 114mm Turbine Ball Bearing Turbo supporting 3300HP
The most powerful single turbo setup on the planet is about to get even more aggressive. The record-breaking 118 GEN 2 LARGE FRAME turbocharger is being replaced by the all-new NEXT GEN 122mm LARGE FRAME turbocharger. It's time to bring all the Next-GEN innovations from our turbo lineup to one of our most powerful units. With a completely redesigned compressor wheel and enhanced compressor cover, this turbocharger will elevate your single turbo build to a whole new level. Are you ready for even more power?
122mm Next Gen Large Frame Turbo Features:
- Exclusive NEXT GEN CEA® (Competition Engineered Aerodynamics) 122mm compressor
- Large frame compressor cover with a smooth, 7" radiused inlet
- Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
- High flow/ highly efficient 114mm CEA turbine wheel
Specifications for the NEXT Gen 122 MM Large Frame:
- Compressor wheel inducer: 121.92 mm
- Compressor wheel exducer: 152.40 mm
- Turbine wheel inducer: 130.56 mm
- Turbine wheel exducer: 114.30 mm
- Max Shaft Speed: 94,153 rpm
122MM NEXT Gen Large Frame Part Numbers:
- 27618436999 - NEXT GEN PT122-114 BB P CC W/ NO TURBINE HOUSING
- 27618436489 - NEXT GEN PT122-114 BB P CC W/T5 INLET/V-BAND DISCHARGE 1.50 A/R
Large Frame 122MM NEXT Gen Fittings, Flanges, Clamps, Sensor:
- PFT047-3047: Recommended Oil Feed Fitting
- PTP074-2102/2104: Recommended Oil Drain Flange
- PTP074-1014: Turbine Housing Inlet Flange
- PTP071-1061: Turbine Housing Inlet Clamp
- PTP074-3029/3030: Turbine Housing Outlet Clamp
- PEL015-9500: Turbo Speed Sensor
- THR-05: CCP Comp Cover Safety Blanket
- PTP075-5009: T5/6 Turbine Inlet Gasket
*All acccesories sold separately.
More Information
| Part Number | 27618436999, 27618436489 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 20 |
| Width | 18 |
| Height | 18 |
| Weight | 60.000000 |
