Precision NEXT Gen 5658 Mirror Image Turbos - 1540HP
Details

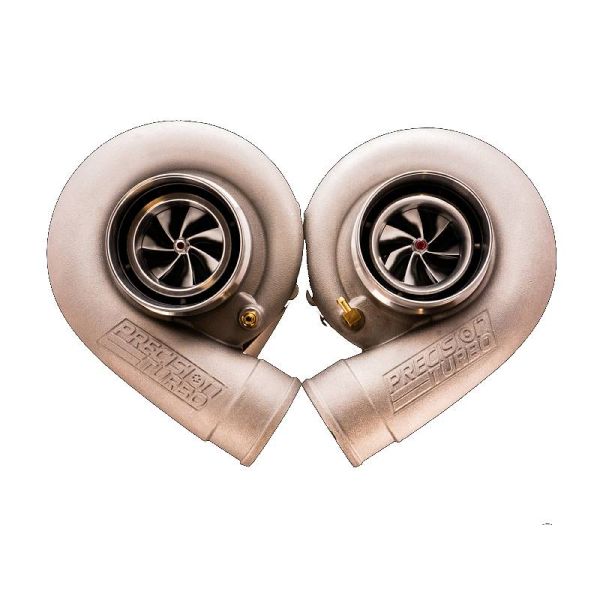

Pair of Precision NEXT Gen 5658 Mirror Image Turbos - 1540HP
Precision Mirror Image / Reverse Rotation turbocharger lineup has provided great performance throughout the years with lots of success stories between from customers around the world. After the success of our the 5658 Next GEN technology, it was just a matter of time before they applied their latest technology to the reverse rotation lineup. The evolution of the lineup involves the development of a new aero package which includes a new compressor cover and a new compressor wheel improving flow by 10%. The new compressor design includes several new flow enhancements. The new compressor wheel involves various changes to the aero including an extended tip on the exducer.
HP Rating (pair): 1540 HP using Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
Both available in an All-New SCP compressor cover w/ 4” inlet and 2-1/2” outlet.
High flow / highly efficient 58mm turbine wheel.
5658 Mirror Next GEN Specifications:
- Compressor Wheel Inducer: 55.98mm
- Compressor Wheel Exducer: 76.20mm / 80.40mm Extended Tip
- Max Shaft Speed: 180,460 rpm
NEXT Gen 5658 Mirror Image Part Numbers:
Reverse Rotation:
58905406129 - NEXT GEN PT5658 R/R BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .64 A/R
58905406139 - NEXT GEN PT5658 R/R BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
Standard Rotation:
50605406279 - NEXT GEN PT5658 S/R BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .64 A/R
50605406149 - NEXT GEN PT5658 S/R BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
More Information
| Part Number | 50605406279, 50605406149, 58905406129, 58905406139 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 27 |
| Width | 12 |
| Height | 11 |
| Weight | 38.000000 |
