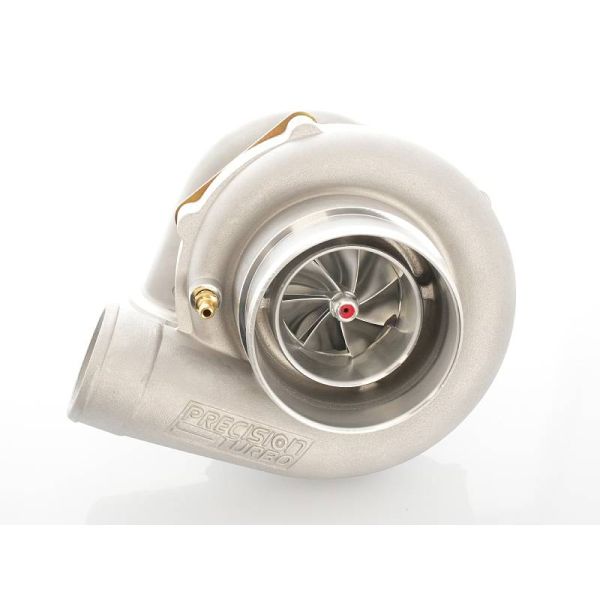

Precision NEXT Gen 5658 SCP Ball Bearing Turbo supporting 770HP
The Precision NEXT Gen 5658 SCP Ball Bearing Turbo is a high-performance powerhouse, designed to support up to 770HP. With its durable SCP ball bearing construction and optimized airflow, this turbocharger ensures superior responsiveness and efficiency, making it perfect for enthusiasts aiming to push their vehicles to the limit while maintaining reliability.
Next Gen 5658 Turbo Features:
Exclusive NEXT GEN 56mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forgin
SCP Compressor cover enhancements providing 10% more flow over the previous Gen 2 cover
Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
High flow / highly efficient 58mm CEA turbine wheel
Available in an all-new SCP compressor cover w/ 4” inlet and 2-1/2”outlet for maximum air flow
Supercore is interchangable with any older Gen 1 or Gen 2 58mm Turbine Wheel hot side. So you can upgrade to this amazing new turbo by purchasing the supercore only.
Specifications for the NEXT Gen 5658:
Compressor Wheel Inducer: 55.98mm
Compressor Wheel Exducer: 76.20mm / 80.40mm Extended Tip
Max Shaft Speed: 180,460 rpm
5658 NEXT Gen Part Numbers:
50605406999 - NEXT GEN PT5658 BB SCP CC SUPERCORE
50605406069 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .48 A/R
50605406079 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .48 A/R
50605406089 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .63 A/R
50605406099 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .63 A/R
50605406109 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .82 A/R
50605406119 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .82 A/R
50605406179 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE .63 A/R
50605406189 - NEXT GEN PT5658 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE W/HOLE .63 A/R
50605406129 - NEXT GEN PT5658 BB SCP CC W/ T3 V-BAND IN/OUT .64 A/R
50605406139 - NEXT GEN PT5658 BB SCP CC W/ T3 V-BAND IN/OUT .82 A/R
50605406279 - NEXT GEN PT5658 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .64 A/R
50605406149 - NEXT GEN PT5658 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
50605406199 - NEXT GEN PT5658 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .58 A/R
50605406567 - NEXT GEN PT5658 BB SCP CC W/ BUICK 3-BOLT .63 A/R STD ACT
50605406568 - NEXT GEN PT5658 BB SCP CC W/ BUICK 3-BOLT .63 A/R HD ACT
50605406569 - NEXT GEN PT5658 BB SCP CC W/ BUICK 3-BOLT .63 A/R
