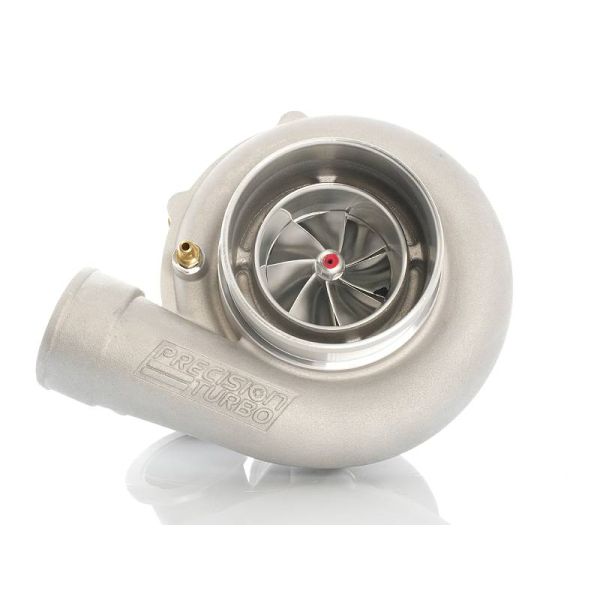

Precision NEXT Gen 5662 SCP Ball Bearing Turbo supporting 800HP
The Precision NEXT Gen 5662 SCP Ball Bearing Turbo is a high-performance powerhouse, designed to support up to 800HP. With its durable SCP ball bearing construction and optimized airflow, this turbocharger ensures superior responsiveness and efficiency, making it perfect for enthusiasts aiming to push their vehicles to the limit while maintaining reliability.
Next Gen 5662 Turbo Features:
Exclusive NEXT GEN 56mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forgin
SCP Compressor cover enhancements providing 10% more flow over the previous Gen 2 cover
Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
High flow / highly efficient 62mm CEA turbine wheel
Available in an all-new SCP compressor cover w/ 4” inlet and 2-1/2”outlet for maximum air flow
Supercore is interchangable with any older Gen 1 or Gen 2 62mm Turbine Wheel hot side. So you can upgrade to this amazing new turbo by purchasing the supercore only.
Specifications for the NEXT Gen 5662:
Compressor Wheel Inducer: 55.98mm
Compressor Wheel Exducer: 76.20mm / 80.40mm Extended Tip
Max Shaft Speed: 180,460 rpm
5662 NEXT Gen Part Numbers:
50605207999 - NEXT GEN PT5662 BB SCP CC W/ NO TURBINE HOUSING (SUPERCORE)
50605207089 - NEXT GEN PT5662 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .63 A/R
50605207099 - NEXT GEN PT5662 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .63 A/R
50605207179 - NEXT GEN PT5662 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE .63 A/R
50605207189 - NEXT GEN PT5662 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE W/HOLE .63 A/R
50605207109 - NEXT GEN PT5662 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .82 A/R
50605207119 - NEXT GEN PT5662 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .82 A/R
50605207129 - NEXT GEN PT5662 BB SCP CC W/ T3 V-BAND IN/OUT .64 A/R
50605207139 - NEXT GEN PT5662 BB SCP CC W/ T3 V-BAND IN/OUT .82 A/R
50605207279 - NEXT GEN PT5662 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .64 A/R
50605207149 - NEXT GEN PT5662 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
50605207799 - NEXT GEN PT5662 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
50605207199 - NEXT GEN PT5662 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .58 A/R
50605207209 - NEXT GEN PT5662 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .68 A/R
50605207219 - NEXT GEN PT5662 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
50605207889 - NEXT GEN PT5662 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .70 A/R
50605207239 - NEXT GEN PT5662 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .84 A/R
50605207249 - NEXT GEN PT5662 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
50605207567 - NEXT GEN PT5662 BB SCP CC W/ BUICK 3-BOLT .63 A/R STD ACT
50605207568 - NEXT GEN PT5662 BB SCP CC W/ BUICK 3-BOLT .63 A/R HD ACT
50605207569 - NEXT GEN PT5662 BB SCP CC W/ BUICK 3-BOLT .63 A/R
50605207577 - NEXT GEN PT5662 BB SCP CC W/ BUICK 3-BOLT .85 A/R STD ACT
50605207578 - NEXT GEN PT5662 BB SCP CC W/ BUICK 3-BOLT .85 A/R HD ACT
50605207579 - NEXT GEN PT5662 BB SCP CC W/ BUICK 3-BOLT .85 A/R
