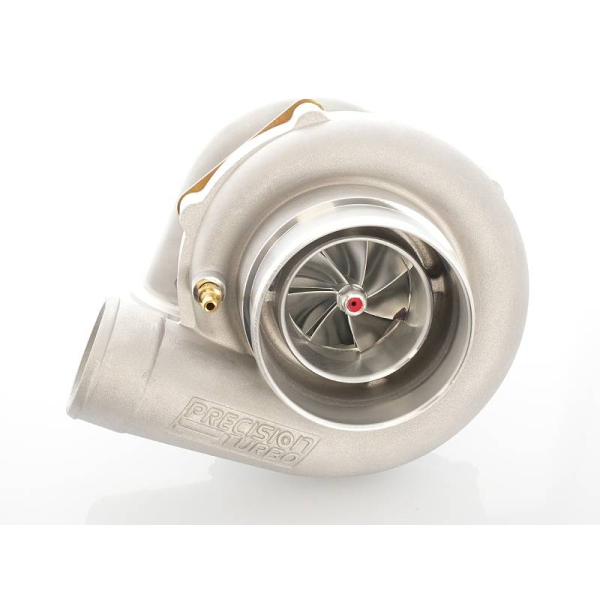

Precision Next Gen 6062 Turbocharger - 825HP
Found it for less but value our service?
Details
Precision NEXT Gen 6062 SCP Ball Bearing Turbo supporting 825HP
The Precision NEXT Gen 6062 SCP Ball Bearing Turbo is a high-performance powerhouse, designed to support up to 825HP. With its durable SCP ball bearing construction and optimized airflow, this turbocharger ensures superior responsiveness and efficiency, making it perfect for enthusiasts aiming to push their vehicles to the limit while maintaining reliability.
Next Gen 6062 Turbo Features:
- Exclusive NEXT GEN 60mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forgin
- SCP Compressor cover enhancements providing 10% more flow over the previous Gen 2 cover
- Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
- High flow / highly efficient 62mm CEA turbine wheel
- Available in an all-new SCP compressor cover w/ 4” inlet and 2-1/2”outlet for maximum air flow
- Supercore is interchangable with any older Gen 1 or Gen 2 62mm Turbine Wheel hot side. So you can upgrade to this amazing new turbo by purchasing the supercore only.
Specifications for the NEXT Gen 6062:
- Compressor Wheel Inducer: 60.35mm
- Compressor Wheel Exducer: 86.00mm / 88.12mm Extended Tip
- Max Shaft Speed: 159,900 rpm
6062 NEXT Gen Part Numbers:
- 50905207999 - NEXT GEN PT6062 BB SCP CC W/ NO TURBINE HOUSING (SUPERCORE)
- 50905207089 - NEXT GEN PT6062 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .63 A/R
- 50905207099 - NEXT GEN PT6062 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .63 A/R
- 50905207179 - NEXT GEN PT6062 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE .63 A/R
- 50905207189 - NEXT GEN PT6062 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE W/HOLE .63 A/R
- 50905207109 - NEXT GEN PT6062 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .82 A/R
- 50905207119 - NEXT GEN PT6062 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .82 A/R
- 50905207129 - NEXT GEN PT6062 BB SCP CC W/ T3 V-BAND IN/OUT .64 A/R
- 50905207139 - NEXT GEN PT6062 BB SCP CC W/ T3 V-BAND IN/OUT .82 A/R
- 50905207279 - NEXT GEN PT6062 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .64 A/R
- 50905207149 - NEXT GEN PT6062 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
- 50905207799 - NEXT GEN PT6062 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
- 50905207199 - NEXT GEN PT6062 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .58 A/R
- 50905207209 - NEXT GEN PT6062 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .68 A/R
- 50905207219 - NEXT GEN PT6062 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
- 50905207889 - NEXT GEN PT6062 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .70 A/R
- 50905207239 - NEXT GEN PT6062 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .84
- 50905207249 - NEXT GEN PT6062 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
RECORD-SETTING NEXT GEN TECHNOLOGY
The 60mm GEN 2 turbocharger have provided exceptional performance throughout previous years and have stood the
test of time. With the success of the industry leading Next GEN lineup of turbochargers, it was time to apply the Next
GEN technology to the 60mm turbocharger. Precision's new Next GEN 6062 turbocharger is set to outpace and outperform
featuring a state-of-the-art 60mm Next GEN CEA® (Competition Engineered Aerodynamics) compressor wheel
machined from a 2618-aluminum forging. Available exclusively in standard rotation and outfitted with Precision's 62mm
turbine wheel, the all-new Next Gen 6062 is proven to provide a substantial improvement over the Gen 2 lineup.
More Information
| Part Number | 50905207999, 50905207089, 50905207099, 50905207109, 50905207119, 50905207129, 50905207139, 50905207149, 50905207179, 50905207189, 50905207199, 50905207209, 50905207219, 50905207239, 50905207249, 50905207279, 50905207799 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 13 |
| Width | 12 |
| Height | 11 |
| Weight | 25.000000 |
