The Next Gen 6266 turbocharger offers enhanced performance from the Gen 2. Features include improved airflow with Next Gen 7x7 CEA technology, a more efficient compressor housing, a 66mm turbine wheel, and a durable dual ceramic ball bearing center. It also has a new SCP compressor cover for better air intake.

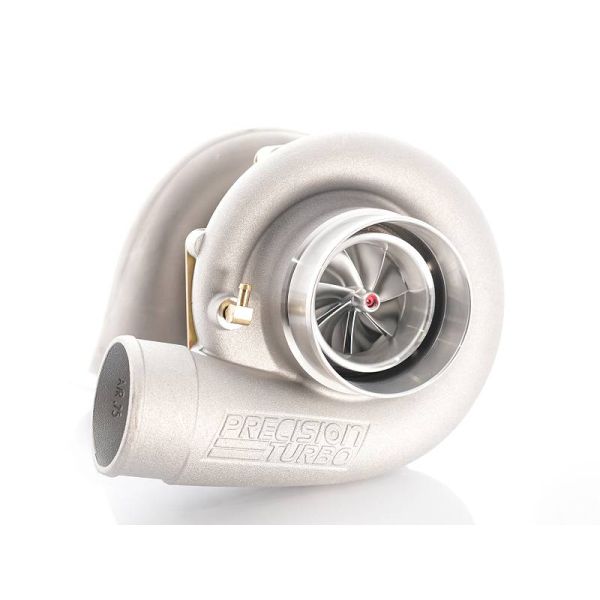

Precision NEXT Gen 6266 SCP Ball Bearing Turbo supporting 925HP
The Precision NEXT Gen 6266 SCP Ball Bearing Turbo is a high-performance powerhouse, designed to support up to 925HP. With its durable SCP ball bearing construction and optimized airflow, this turbocharger ensures superior responsiveness and efficiency, making it perfect for enthusiasts aiming to push their vehicles to the limit while maintaining reliability.
Next Gen 6266 Turbo Features:
Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618 aluminum closed die forging for strength and optimized airflow
Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers
High flow / highly efficient 66mm turbine wheel
Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability
Available in an all-new SCP compressor cover w/ 4” inlet and 2-1/2”outlet for maximum air flow
No price increase over Gen 2
Specifications:
Compressor Wheel Inducer: 62mm
Compressor Wheel Exducer: 86mm/ 88.1mm Extended Tip
Turbine Wheel Inducer: 74mm
Turbine Wheel Exducer: 66mm
Part Numbers:
27404210999 - SUPERCORE, NO TURBINE HOUSING
27404210089 - T3 INLET/4-BOLT DISCHARGE .63 A/R
27404210099 - T3 INLET/V-BAND DISCHARGE .63 A/R
27404210109 - T3 INLET/4-BOLT DISCHARGE .82 A/R
27404210119 - T3 INLET/V-BAND DISCHARGE .82 A/R
27404210139 - T3 V-BAND IN/OUT .82 A/R
27404210149 - T3 STAINLESS V-BAND IN/OUT .82 A/R
27404210179 - T3 INLET/5-BOLT DISCHARGE .63 A/R
27404210189 - T3 INLET/5-BOLT DISCHARGE W/HOLE .63 A/R
