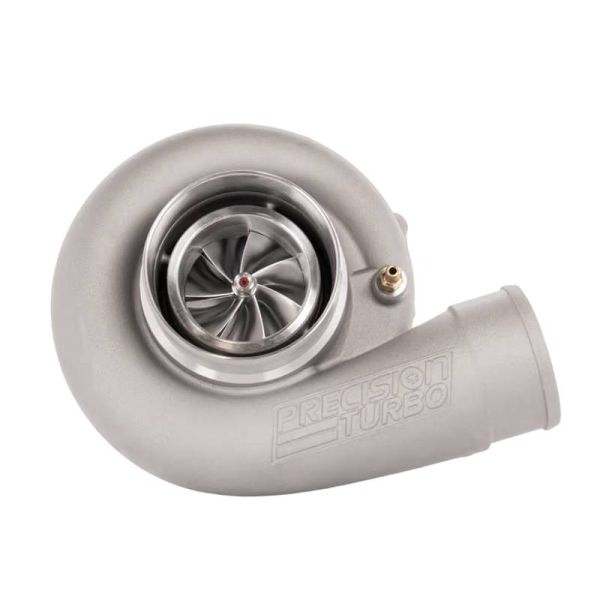

Precision NEXT Gen 6466 Reverse Rotation Turbo - 1000HP
Details
Precision PTE NEXT Gen 6466, Reverse Rotation, Mirror Image Turbo, 1000HP, 2000HP Twin Turbos, Ball Bearing Turbochargers
Next Gen 6466 Reverse Rotation Turbo Features:
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618 aluminum closed die forging for strength and optimized airflow
• Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers
• High flow / highly efficient 66mm turbine wheel
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability
• Available in an All-New SCP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow
Next Gen 6466 Mirror Image Turbo Specifications:
Compressor Wheel Inducer: 64mm
Compressor Wheel Exducer: 86mm/ 88.1mm Extended Tip
Turbine Wheel Inducer: 74mm
Turbine Wheel Exducer: 66mm
Ported S Cover PT6466 Next Gen Reverse Rotation Part Numbers:
51305229999 - R/R NEXT GEN PT6466 BB SCP CC SUPERCORE
51305229149 - R/R NEXT GEN PT6466 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
51305229799 - R/R NEXT GEN PT6466 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
Ported H Cover PT6466 Next Gen Reverse Rotation Part Numbers:
51307239999 - R/R NEXT GEN PT6466 BB HP CC SUPERCORE
51307239149 - R/R NEXT GEN PT6466 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
51307239799 - R/R NEXT GEN PT6466 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
More Information
| Part Number | 51305229149, 51305229799, 51307239149, 51307239799, 51305229999, 51307239999 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 14 |
| Width | 12 |
| Height | 11 |
| Weight | 38.000000 |
