Precision NEXT Gen 6870 Mirror Image Turbos - 2400HP
Details

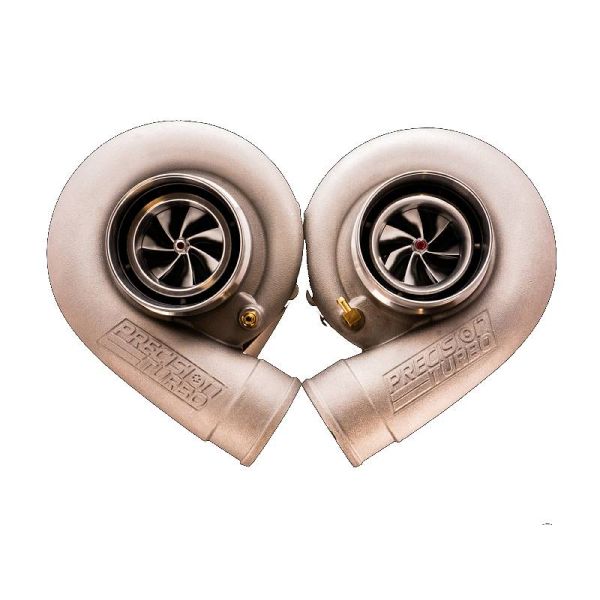

Pair of Precision NEXT Gen 6870 Mirror Image Turbos - 2400HP
Precision is proud to announce the latest rendition of the 6870 NEXT GEN turbochargers, adding to the Mirror Image / Reverse Rotation turbocharger lineup. Precision turbo has proven time again, that they provide the highest performance in turbocharger technology. With countless success stories around the world, and many more to come. The GEN2 6870 served the racing community well, for many years, with countless records broken, and races won. Combining NEXT GEN 6870 technology with one of our most successful and popular turbochargers, it was just a matter of time before it was applied to the mirror/reverse rotation lineup. With that being said, what you’ve all been waiting for is finally here!
“The All-New Reverse Rotation NEXT GEN 6870 turbocharger” is now available!
The evolution of the lineup involves the development of new compressor wheel and cover aerodynamic designs, improving flow by 10%. Optioned in both SCP and HP compressor covers to meet your needs. In addition to multiple turbine housing options ranging from stainless steel T3 sized v-band in/out to stainless steel T4 sized v-band in/out.
CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
Available in an All-New SCP compressor cover w/ 4” inlet and 2-1/2” outlet and the HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow.
High flow / highly efficient 70mm turbine wheel.
6870 Next GEN Specifications:
• Compressor Wheel Inducer: 68mm
• Compressor Wheel Exducer: 92.5mm/ 94.7mm ET
• Turbine Wheel Inducer: 78.7mm
• Turbine Wheel Exducer: 70.2mm
6870 Next GEN Mirror Image Part Numbers:
Reverse Rotation:
51605250999 - R/R NEXT GEN PT6870 BB SCP CC W/ NO TURBINE HOUSING
51605250289 - R/R NEXT GEN PT6870 BB SCP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
51605250299 - R/R NEXT GEN PT6870 BB SCP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
51605250799 - R/R NEXT GEN PT6870 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
51607250999 - R/R NEXT GEN PT6870 BB HP CC W/ NO TURBINE HOUSING
51607250289 - R/R NEXT GEN PT6870 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
51607250299 - R/R NEXT GEN PT6870 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
51607250799 - R/R NEXT GEN PT6870 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
Standard Rotation:
28004215999 - S/R NEXT GEN PT6870 BB SCP CC W/ NO TURBINE HOUSING
28004215289 - S/R NEXT GEN PT6870 BB SCP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
28004215299 - S/R NEXT GEN PT6870 BB SCP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
28004215799 - S/R NEXT GEN PT6870 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
28007215999 - S/R NEXT GEN PT6870 BB HP CC W/ NO TURBINE HOUSING
28007215289 - S/R NEXT GEN PT6870 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
28007215299 - S/R NEXT GEN PT6870 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
28007215799 - S/R NEXT GEN PT6870 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
More Information
| Part Number | 51605250289, 51605250299, 51605250799, 51605250999, 51607250289, 51607250299, 51607250799, 51607250999, 28004215999, 28004215289, 28004215299, 28004215799, 28007215999, 28007215289, 28007215299, 28007215799 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 27 |
| Width | 12 |
| Height | 11 |
| Weight | 38.000000 |
