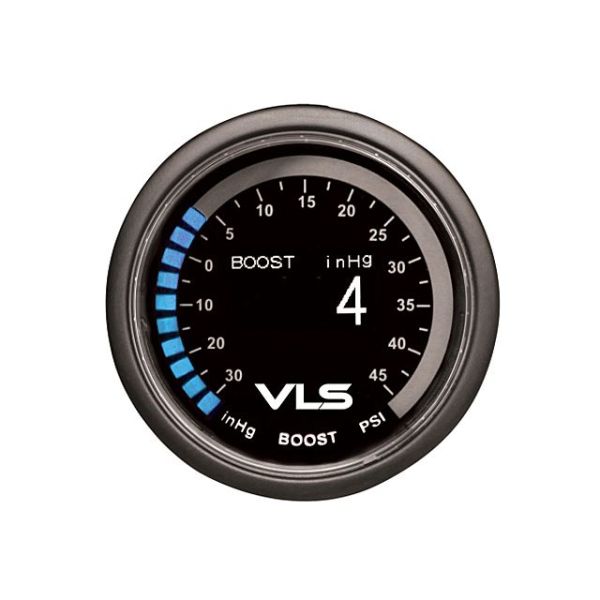

Revel VLS 52mm Digital OLED Boost Gauge
Found it for less but value our service?
Details
REVEL VLS OLED BOOST GAUGE
2 1/16 in. (52mm) diameter gauge
30 inHG to 45 PSI reading
Digital OLED display
30 LED outer ring
Daisy chain compatible
Boost sensor included
Mounting kit included
The Revel VLS Boost gauge monitors both vacuum from 30 inHG and boost pressure up to 45 PSI. The OLED screen allows for easy readings from any viewing angle, and a 30 LED outer ring for viewing at a quick glance. This kit is included with the boost sensor for a simple installation process.
The Revel VLS Boost gauge is daisy-chain compatible with the VLS Water Temperature gauge, VLS Oil Temperature gauge, VLS Oil Pressure gauge, and VLS Voltage gauge.
OLED Screen
Maximum comfort is attained by the use of an OLED (Organic Light Emitting Diode) numerical display. When compared to a traditional LCD display, the OLED display provides sharper contrast resulting in a deeper black for a crisp, clear images that is easier to read at a glance. The technology also allows for undistorted viewing angles approaching 170 degrees. The OLED display also does not require a backlight to be clearly visible at night, which gives the slim profile of the gauge — perfect for mounting in areas where space is an issue.
Daisy Chain Compatible
The Revel VLS Boost gauge is daisy chain compatible with other VLS gauges. This requires only one source of power for the first gauge in the series and utilizing the included daisy chain cable to power other gauges. This allows for a clean installation that avoids having many cables connected to a power source.
Parts Included
All Revel VLS gauges include the necessary hardware, sensors, and universal mounting pod and hood, as well as the installation instructions:
(1) Boost Gauge 2 1/16 in. (52mm)
(1) Power Harness
(1) Boost / Vacuum sensor and wiring harness
(1) Mounting Pod
(1) Sun Shade (hood)
(1) 3M double sided tape
(2) Mounting Bracket Threaded Extension
(2) Washers
(2) Nuts
(1) Mounting Bracket
More Information
| Part Number | 1TR1AA001R |
|---|---|
| Brand | Revel |
| Type of Part | Gauges, Etc |
| Length | 10 |
| Width | 8 |
| Height | 6 |
| Weight | 2.000000 |
