2013+ BRZ / FRS - FT86 Tein Street Basis Coilovers
Details

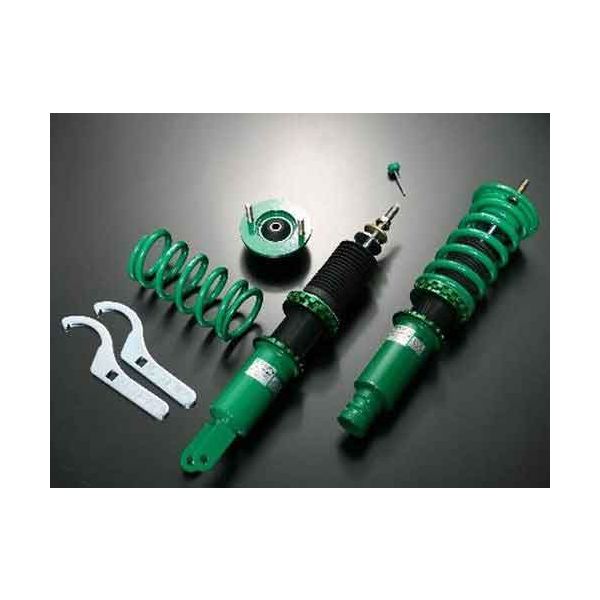

Tein Street Basis Coilovers for 2013-2020 Subaru BR-Z, 2012-2016 Scion FR-S - GSQ54-8USS2
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -68
- Max Low (inch): -2.7
- Max High (mm): -25
- Max High (inch): -1
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -25
- Recommended High (inch): -1
- Spring
- Rate (kgf/mm): 5
- Rate (lbs/in): 280
- SP PART#SW050-13175
- Free Length (mm): 175
- I.D. (mm): ID70
Rear Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -75
- Max Low (inch): -3
- Max High (mm): -4
- Max High (inch): -0.2
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#S8Q55-13060
- Free Length (mm): 225
Fitment:
- Year: 2017+
- Make: Subaru
- Model: BRZ
- Drivetrain: FR
- Chassis: ZCA
- Motor Size: 2000
- Vehicle Region: USA
Notes:
- 2Dr/4Cyl
Features:
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
More Information
| Part Number | GSQ54-8USS2 |
|---|---|
| Brand | Tein |
| Type of Part | Suspension |
| Engine Fitment | FA20 |
| Length | 35 |
| Width | 12 |
| Height | 12 |
| Weight | 40.000000 |
