TiAL Designed V-Band Clamps and Flanges are manufacture in house. Investment cast Stainless steel and cnc machined flanges ensure a secure and pressure tight fit.
TiAL's V60 is equipped with the racing valve stem. The Wear Coating is resistant the the corrosive effects of Lead oxide which is present when running leaded racing fuel.
High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
High temperature silicone Nomex reinforced actuator diaphragm.
17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
All Stainless Steel hardware.
Mating weld flanges are 304L
Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
More Information
Part Number
TL-V60
Brand
TiAL Sport
Type of Part
External Wastegates (EWG)
Length
12
Width
10
Height
8.0
Weight
10.000000
Reviews
Write Your Own Review
Fitment
Details

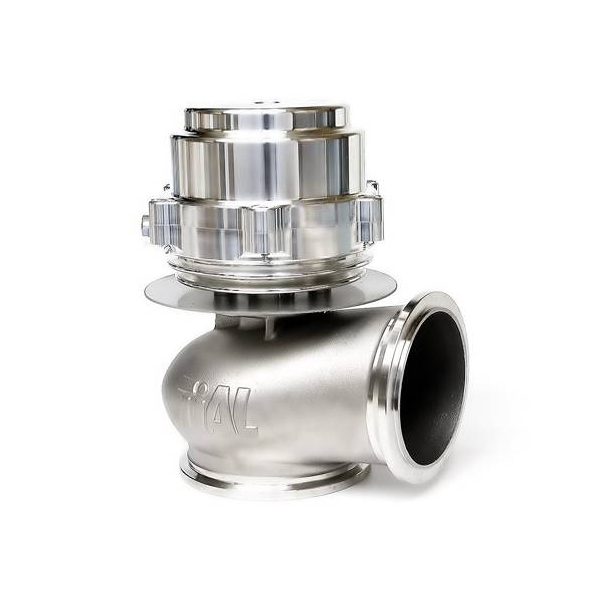

Tial 60mm V60 V-Band Wastegate
V60 Assembly
V60 Valve Seat
Inlet V-band clamp
Inlet Flange
Outlet V-Band Clamp
Outlet Flange
2 TiAL Air Fittings
TiAL Designed V-Band Clamps and Flanges are manufacture in house. Investment cast Stainless steel and cnc machined flanges ensure a secure and pressure tight fit.
TiAL's V60 is equipped with the racing valve stem. The Wear Coating is resistant the the corrosive effects of Lead oxide which is present when running leaded racing fuel.
High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
High temperature silicone Nomex reinforced actuator diaphragm.
17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
All Stainless Steel hardware.
Mating weld flanges are 304L
Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
