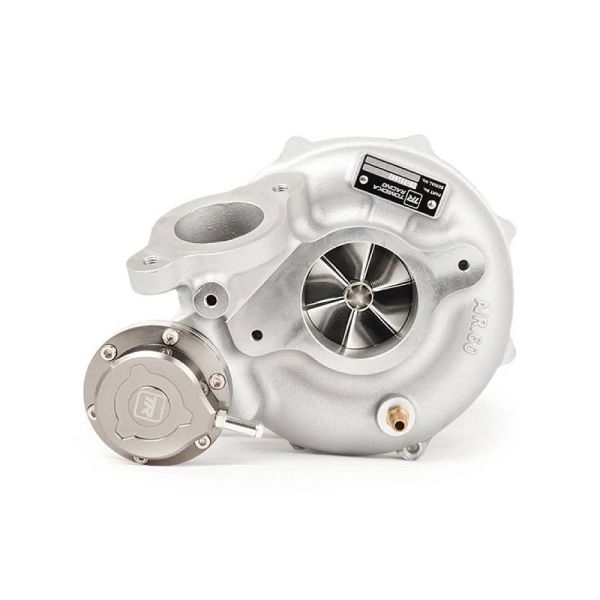

2015-2021 WRX FA20 TR GTX29 Ball Bearing Turbo Upgrade (Gen II) - 600HP
*$450 OFF, (7) In Stock, Order Now! - Ends 09/30
TAGS: 2015, 2016, 2017, 2018, 2019, 2020, 2021 Subaru WRX, Forester, FA20, GTX29 Ball Bearing Turbo Upgrade, Tomioka Racing, TR-TS1052
Details
2015-2021 WRX FA20 TR GTX29 Ball Bearing Turbo Upgrade (Gen II) - 600HP - TR-TS1052
The next generation GTX29 turbo for the Subaru FA20DIT engine features 8% larger turbine wheel compared to previous version. In addition, the turbo also features a brand new dual ceramic ball bearing design from its previous generation. On the compressor side, the billet wheel is point-milled to improve airflow and reducing turbulence with the bullet locking nut. This turbo is perfect for users who look for quick spool turbo, gain in overall power band and top-end power for the Subaru FA20DIT turbo. All necessary fittings and gaskets are included in the box to make the installation process painless.
|
Bearing Type: |
Dual Ceramic Ball-Bearing |
|
Flange Type: |
Standard Subaru 5-Bolts |
|
Compressor / Turbine Wheel: |
72 mm / 61mm |
|
Turbine Housing: |
10cm2 |
|
Actuator: |
1.03 bar / 15 psi |
|
Horsepower: |
600 HP |
Features:
- Angular Contact Dual Ceramic Ball Bearing
- Point-Milled Compressor Wheel
- Larger Turbine Wheel
- 100% Bolt-On
- Bullet Locking Nut
Applications:
- 2015+ Subaru WRX
- 2014+ Subaru Forester (FA20DIT)
Kit Contents:
- Turbocharger
- Gaskets
- Hardware Kit
More Information
| Part Number | TR-TS1052 |
|---|---|
| Brand | Tomioka Racing |
| Type of Part | Turbo Upgrades |
| Engine Fitment | FA20 |
| Length | 14 |
| Width | 12 |
| Height | 10 |
| Weight | 35.000000 |
