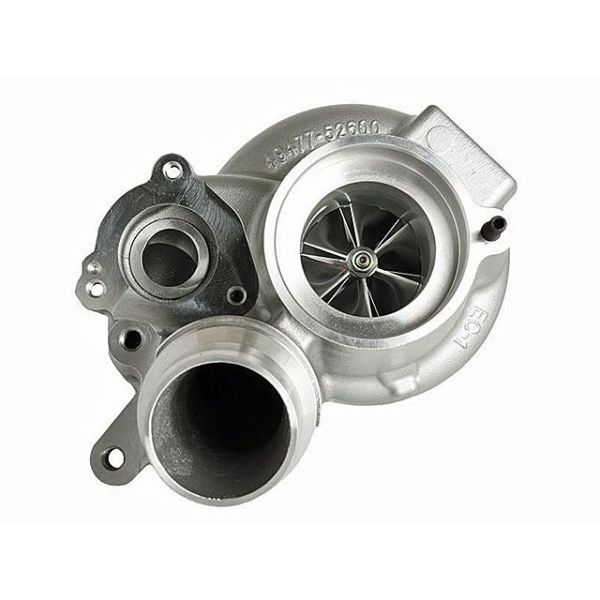

Tomioka Racing Turbocharger - BMW N20-N26
Details
Introducing the Tomioka Racing turbocharger upgrade for the BMW N20/N26 engine. TR’s turbo offers a billet compressor wheel and larger wheel compared to the factory turbo. The increase in diameter is further matched with larger porting of the interior of the factory-sized compressor housing. From the outside, it looks like a factory turbo but rather it has improved airflow from the larger 60mm wheel diameter and longer 30mm wheel-blade to extract more power from the N20/N26, achieving more e_ective boost. There is no core exchange required for this turbo. This is 100% bolt-on and balanced replacement turbo with improved performance over the factory turbo. This is a perfect turbo upgrade for users who are looking to get more kick from the N20/N26 motor.
Turbo Characteristics:
Flange Type: Standard BMW Header Bolt-On
Compressor Wheel: Billet Compressor Wheel
Turbine Wheel: 60 mm
Turbine Housing: Standard (OEM Machined) - Includes Ported and Polished Inlet
Max Power: 345HP
Features:
• 100% Bolt-On
• Large Billet Compressor Wheel
• 60mm Compressor Wheels
• Ported and Polished Inlet
• 30mm Wheel-Blade Length
• Stock Location
Kit Contents:
• Turbocharger
• Gaskets
• Hardware Kit
Applications:
X1 - 09-17
X3 - 09-17
X4 - 14-18
Z4 - 09-16
125i - 12-18
220i - 14-18
225i - 14-18
228i - 14-18
320i - 12-18
320i GT - 13-18
328i - 09-18
520i - 09-18
525i - 13-18
528i - 09-18
More Information
| Part Number | TR-TW2000 |
|---|---|
| Brand | Tomioka Racing |
| Type of Part | Turbo Upgrades |
| Engine Fitment | N20/N26 |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 30.000000 |
