Tomioka Racing Turbocharger - BMW N55
Details

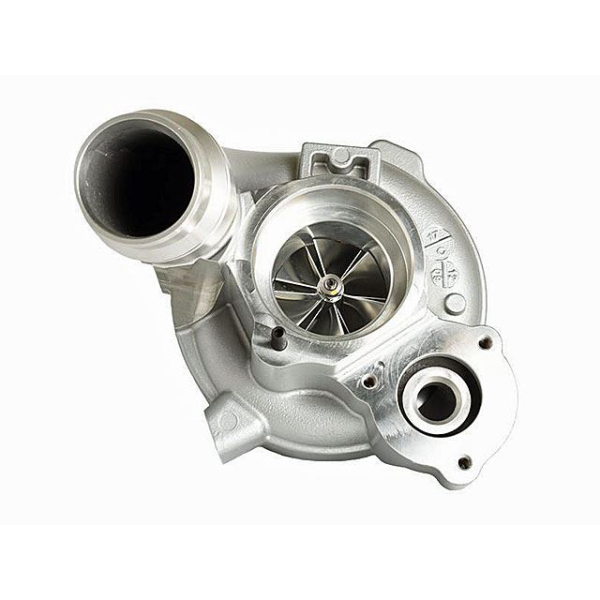

Introducing Tomioka Racing’s turbocharger upgrade for the BMW N55 engine. TR’s turbo offers a billet compressor wheel in 6+6 configuration and a larger wheel compared to the factory turbo. The increase in diameter is further matched with larger porting of the interior of the factory-sized compressor housing. It looks like a factory turbo, but contains a larger 72mm compressor wheel and longer 35mm wheel-blade to improve airflow and extract more power from the N55 motor, achieving more efficient boost. No Core exchange is required. This is a 100% bolt-on balanced replacement turbo with improved performance over the stock unit.
Turbo Characteristics:
Flange Type: Standard BMW Header Bolt-On
Compressor Wheel: 72mm Billet Compressor Wheel
Turbine Wheel: In: 50mm - Ex: 48mm
Turbine Housing: Standard (OEM Machined) - Includes Ported and Polished Inlet
Max Power: 450 HP
Features:
• 100% Bolt-On
• Large Billet Compressor Wheel
• 70mm Compressor Wheel
• Ported and Polished Inlet
• 35mm Wheel-Blade Length
• Stock Location
Kit Contents:
• Turbocharger
• Gaskets
• Hardware Kit
BMW Applications:
X3 - 2010+
X5 - 2010+
X6 - 2011+
135i - 2010+
235i - 2015+
335i - 2010+
535i GT - 2009+
535i - 2010+
640i - 2011+
More Information
| Part Number | TR-TW2001 |
|---|---|
| Brand | Tomioka Racing |
| Type of Part | Turbo Upgrades |
| Engine Fitment | N55 |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 30.000000 |
