Toyota 1JZ-GTE VVTi Artec Direct Replacement Turbo Manifold
Details

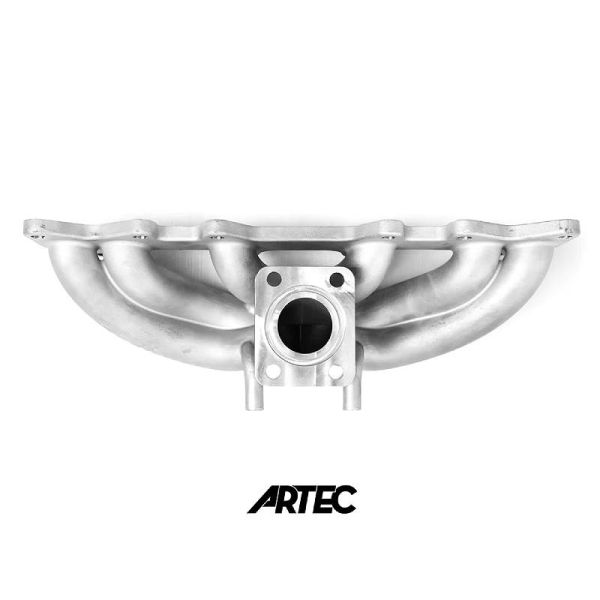

Artec Stainless Steel Cast Turbo Manifold for Toyota 1JZ-GTE VVTi Standard Placement. This is a direct replacement Turbo Manifold for the 1JZ-GTE VVTi.
Turbo Flange Option Descriptions:
- Stock Turbo, Stock Location (Standard)
- G Series V-Band IWG Bottom Mount is designed for Garrett internally wastegated G Series turbochargers.
- V-Band 44mm EWG Top Mount is designed for Garrett or Precision V-Band Inlet turbos running a 50-55mm vband connection. This is an externally wastegated manifold made to run a 44-46mm wastegate like the Tial MVR, Turbosmart Hypergate or Precision 46mm external wastegates. This design allows enough room for up to a 4.5" downpipe!
More Information
| Part Number | ARTEC-1JZ-GTE-VVTI-STANDARD |
|---|---|
| Brand | Artec |
| Type of Part | Turbo Manifolds |
| Engine Fitment | 1JZ-GTE |
| Length | 28 |
| Width | 10 |
| Height | 8 |
| Weight | 25.000000 |
Reviews
Fitment
Artec Stainless Steel Cast Turbo Manifold for Toyota 1JZ-GTE VVTi Standard Placement. This is a direct replacement Turbo Manifold for the 1JZ-GTE VVTi.
Turbo Flange Option Descriptions:
- Stock Turbo, Stock Location (Standard)
- G Series V-Band IWG Bottom Mount is designed for Garrett internally wastegated G Series turbochargers.
- V-Band 44mm EWG Top Mount is designed for Garrett or Precision V-Band Inlet turbos running a 50-55mm vband connection. This is an externally wastegated manifold made to run a 44-46mm wastegate like the Tial MVR, Turbosmart Hypergate or Precision 46mm external wastegates. This design allows enough room for up to a 4.5" downpipe!
