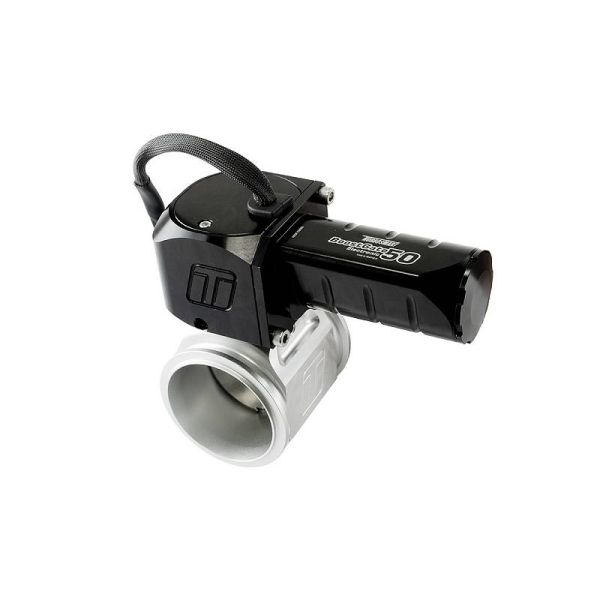

Turbosmart BoostGate50 Electronic 50mm Charge Air Valve (BOV)
Details
Electronic EBG50 50mm BoostGate50 Charge Air Valve / Blow Off Valve by Turbosmart - TS-0265-1042
Turbosmart BoostGate50 is an electronically controlled butterfly style valve designed for charge pipe boost control. The BoostGate50 is manufactured from Billet Aluminum for reduced mass and features the kind of control and flow you’ve come to expect from the StraightGate series of Turbosmart products.
Unlike a traditional external wastegate which bypasses gas around the turbine housing aiming to reduce turbocharger shaft speed and effectively, boost levels – Charge Air control is a controlled bleed of the compressed air on the cold-side of the turbocharger system. Mounted to the charge pipe, the BoostGate50 can be used to modulate this air flow directly, rather than the indirect method of traditional control.
Charge-Air Control is specifically suited to applications such as drag racing where turbocharger specifications have already been optimized and the turbine is not the limiting factor in performance. The BoostGate50 is a zero offset butterfly styled valve which enables incredible resolution, enormous flow and the kind of boost control required to deliver the perfect pass, every time. Equipped with the Patent Pending Zero-Backdrive gearbox technology to reduce overall power consumption and maximize response, the BoostGate50 is Engineered to Win!
SUPPLIED WITH
eBG50 Electronic BoostGate50
V-Band Clamps
Aluminium Weld Flanges
Turbosmart Decal
Features
50mm (1.97in) Butterfly style zero-offset valve
383.9 CFM / 10.87m3 per minute flow
Stainless steel (630) Butterfly and shaft
Billet Aluminium Main Body
360 degree mounting options on V-band
Clock-able actuator positions (2 x 120 Deg options)
Full Electronic Actuation (Dual H-bridge input)
Onboard (0-5v) Analogue Actuator Temperature Sensor
Onboard (0-5v) Analog Valve Position Sensor
Onboard (PWM) Digital Valve Position Sensor
7 Wire Unterminated Flying Lead Loom
More Information
Part Number | TS-0265-1042 |
---|---|
Brand | Turbosmart |
Type of Part | Blow Off Valves |
Length | 8 |
Width | 6 |
Height | 6 |
Weight | 6.000000 |
