TurboWerx Exa-Pure 100µ Oil Filtration System
Details

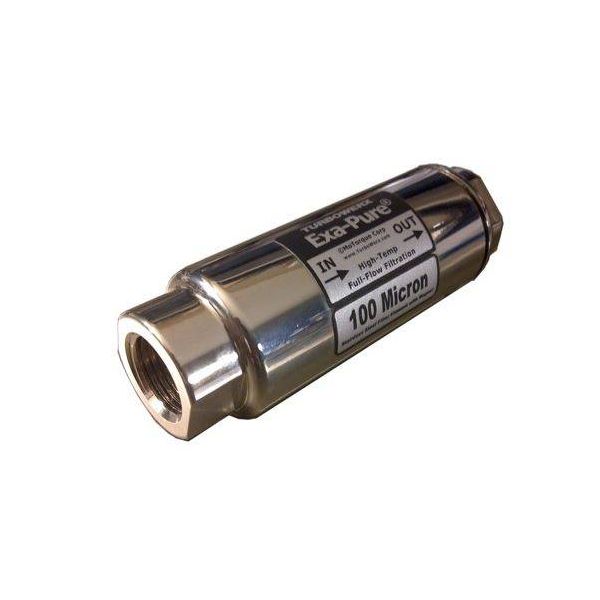

TurboWerx Exa-Pure 100µ Oil Filtration System - TWX-EP38NPT-100-N, TWX-EP38NPT-100-B
The Turbowerx Exa-Pure™ 100µ Filtration System is the ultimate inline filter designed for use at high temperatures as required with turbocharger discharge oil. The large 100µ stainless steel filter element is easily inspected/cleaned and inexpensive to replace. A powerful magnet is mounted in the tip of the filter element for additional filtering. It utilizes two 3/8 NPT female in/out ports allowing the use of a variety of adapters for easy tailoring to the application. This filter is available in two finishes - an anti-corrosion nickel-plated version to match the Exa-Pump, and a black powder-coated version. Two -8AN nickel-plated adapters are included. (-6AN and -10AN are optional substitutions.) The filter body itself is 3.5” long x 1.2” in diameter. With both AN fittings installed the total length is 6”.
More Information
| Part Number | TWX-EP38NPT-100-N, TWX-EP38NPT-100-B |
|---|---|
| Brand | TurboWerx |
| Type of Part | Turbo Oiling |
| Length | 8 |
| Width | 6 |
| Height | 6 |
| Weight | 5.000000 |
