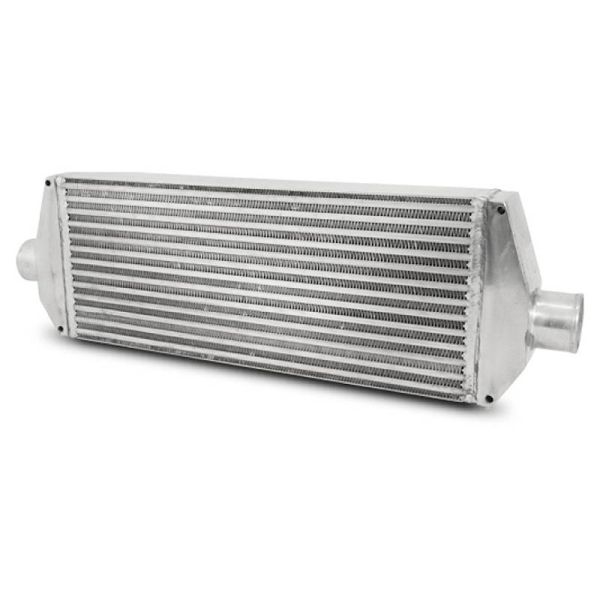

Vibrant 12810 Front Mount Intercooler - 22x9x3.25" Core - 600HP
Details
Vibrant 12810 Front Mount Intercooler - 22x9x3.25" Core - 600HP
Vibrant Performance Intercoolers feature Bar and Plate construction and a unique louvered fin design on the ambient path that maximizes the core’s available surface area, and an offset fin design on the charge path allows for minimal pressure loss. Our Cast Aluminum End Tanks are precision TIG-welded to the core and pressure tested for leak-free performance.
Overall Length: 30.000"
Core Width: 22.000"
Height: 9.000"
Inlet / Outlet OD: 2.500"
Inlet / Outlet Height: 3.500"
Inlet / Outlet Neck Length: 1.750"
Core Thickness: 3.250"
More Information
| Part Number | 12810 |
|---|---|
| Brand | Vibrant Performance |
| Type of Part | Intercoolers |
| Length | 34 |
| Width | 14 |
| Height | 6 |
| Weight | 25.000000 |
