Wagner Tuning Competition Intercooler Kit EVO 3
Details
Description
THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS, UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE!
Competition Intercooler Kit EVO1 for Audi RS3 8V and TTRS 8S
Audi RS3 8V Sportback 270KW/367PS 04/2015–04/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+
Audi TTRS 8S 294KW/400PS 11/2016+

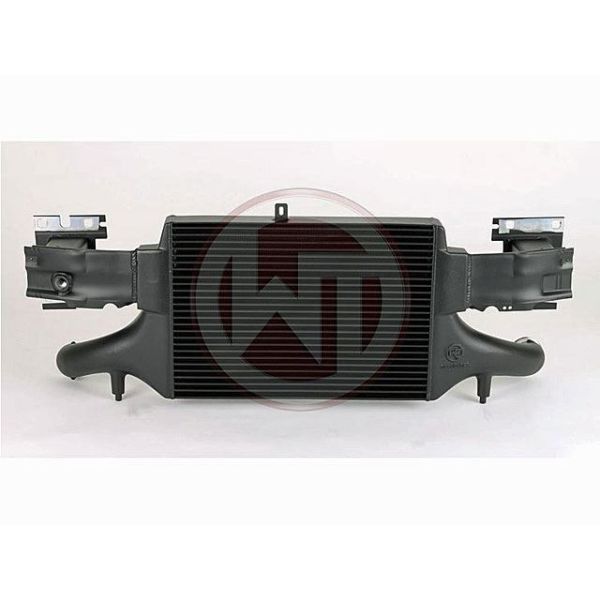

The Competition Intercooler has the following core dimensions (660x180x110 = 13.070cm³). The high performance intercooler core provides a 14% larger frontal area and 57% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. The result is excellent cooling properties and less pressure drop then the stock intercooler. Despite of it´s size the weight of the complete intercooler is only 8,3kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% plug and play. All of our products undergo rigorous quality control.
Dimensions stock Intercooler:
640mm x 163mm x 80mm
V=8,3 Liter
A=1043 cm²
Dimensions WAGNERTUNING intercooler:
660mm x 180mm x 110mm
V=13,07 Liter
A=1188 cm²
Packing list:
1 intercooler (coated black)
1 installation instruction
More Information
| Part Number | 200001136 |
|---|---|
| Brand | Wagner Tuning |
| Type of Part | Intercoolers |
| Length | 17.0 |
| Width | 52.0 |
| Height | 20.0 |
| Weight | 46.000000 |
